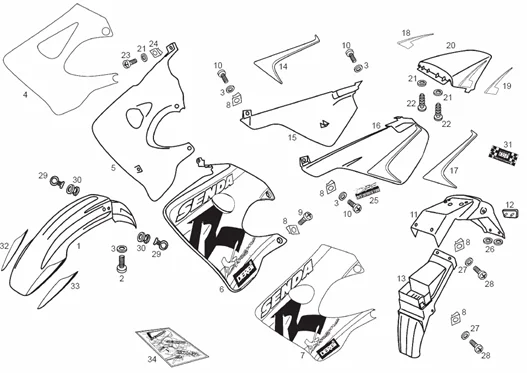

Vehicle Exploded View - DERBI SENDA R 50 SENDA R X-TREM 2003 2a EDICION
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)
Tables : 5 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_5.png)
1 |
00H00706431 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - BLACK "PIAGGIO GENUINE PART" GILERA 50 RCR 2006> -00H00711025- More informationQuantity required : 1 |
||||||
|
1 |
00H00706437C5 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00706436C5 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00706435C5 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00706434 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00715021 - GUARDABARRO DT AZUL More informationQuantity required : 1 |
||||||
|
1 |
00H00706432 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
2 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
3 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
4 |
00H04917565 - ADHESIF More informationQuantity required : 1 |
||||||
|
4 |
00H04917564 - ADHESIF More informationQuantity required : 1 |
||||||
|
4 |
00H04917563 - ADHESIF More informationQuantity required : 1 |
||||||
|
4 |
00H04917562 - ADHESIF More informationQuantity required : 1 |
||||||
|
4 |
00H04917561 - ADHESIF More informationQuantity required : 1 |
||||||
|
5 |
00H04426808C - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04426807C5 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04426806 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04426805C - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04426804 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04426803 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04405772 - TAPA DT.DR.VERDE S-R S/C More informationQuantity required : 1 |
||||||
|
5 |
00H04426801 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
6 |
00H04426838C5 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04426837C5 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04426836 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04426835 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04426834 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04426833 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04426832 - SCTO.TAPA DT.IZ.VDE SD R X-TR More informationQuantity required : 1 |
||||||
|
6 |
00H04426831 - SCTO.TAPA DT.IZ.RJ SD R X-TR More informationQuantity required : 1 |
||||||
|
7 |
00H04917575 - ADHESIF More informationQuantity required : 1 |
||||||
|
7 |
00H04917574 - ADHESIF More informationQuantity required : 1 |
||||||
|
7 |
00H04917573 - ADHESIF More informationQuantity required : 1 |
||||||
|
7 |
00H04917572 - ADHESIF More informationQuantity required : 1 |
||||||
|
7 |
00H04917571 - ADHESIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701- More informationQuantity required : 1 |
||||||
|
10 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/9/img/64299.jpg)
11 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00712341- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/8/img/64118.jpg)
12 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/3/img/64293.jpg)
13 |
REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H00712341- More informationQuantity required : 1 |
||||||
|
14 |
00H00515655 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
14 |
00H00515654 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
14 |
00H00515653 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
14 |
00H00515652 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
14 |
00H00515651 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
15 |
00H00541698C5 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541697C5 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541696 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541695C - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541694 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541693 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541692 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541691 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
16 |
00H00541708C5 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541707C5 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541706C5 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541705C5 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541704 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541703 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541702 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541701 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
17 |
00H00516645 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
17 |
00H00516644 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
17 |
00H00516643 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
17 |
00H00516642 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
17 |
00H00516641 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
18 |
00H00618605 - ADHESIF More informationQuantity required : 1 |
||||||
|
18 |
00H00618604 - ADHESIF More informationQuantity required : 1 |
||||||
|
18 |
00H00618603 - ADHESIF More informationQuantity required : 1 |
||||||
|
18 |
00H00618602 - ADHESIF More informationQuantity required : 1 |
||||||
|
18 |
00H00618601 - ADHESIF More informationQuantity required : 1 |
||||||
|
19 |
00H00618485 - ADHESIF More informationQuantity required : 1 |
||||||
|
19 |
00H00618484 - ADHESIF More informationQuantity required : 1 |
||||||
|
19 |
00H00618483 - ADHESIF More informationQuantity required : 1 |
||||||
|
19 |
00H00618482 - ADHESIF More informationQuantity required : 1 |
||||||
|
19 |
00H00618481 - ADHESIF More informationQuantity required : 1 |
||||||
|
20 |
00H04912098C5 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H04912097C - DOSSERET SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H04912096C5 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H04912095C5 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/8/5/img/64285.jpg)
20 |
REAR MUDGUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> BLACK -00H00608164- More informationQuantity required : 1 |
||||||
|
20 |
00H04912093 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H04912092 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H04912091 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
21 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/1/img/63681.jpg)
22 |
SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
23 |
SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
24 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
|
25 |
00H02200022 - CALCA DPF SENDASM 2000 More informationQuantity required : 1 |
||||||
|
25 |
00H02200021 - ADHESIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
26 |
WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239- More informationQuantity required : 1 |
||||||
|
28 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/8/img/64668.jpg)
29 |
FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
30 |
RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021- More informationQuantity required : 1 |
||||||
|
31 |
00H04900231 - CALQUE DERBI 8 FOIS More informationQuantity required : 1 |
||||||
|
32 |
00H00707255 - ADHESIF More informationQuantity required : 1 |
||||||
|
32 |
00H00707254 - ADHESIF More informationQuantity required : 1 |
||||||
|
32 |
00H00707253 - ADHESIF More informationQuantity required : 1 |
||||||
|
32 |
00H00707252 - ADHESIF More informationQuantity required : 1 |
||||||
|
32 |
00H00707251 - ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00H00701265 - ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00H00701264 - ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00H00701263 - ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00H00701262 - ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00H00701261 - ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H05143651 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H05143652 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H05143653 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H05143654 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H05143655 - JEU ADHESIF More informationQuantity required : 1 |
All the exploded views of this vehicle
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/no-image-available.jpg)
-
1 Béquille
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_1.png)
-
10 Frein arriere
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_10.png)
-
11 Instruments
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_11.png)
-
12 Moteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_12.png)
-
13 Arbre moteur - Cylindre - Piston
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_13.png)
-
14 Embrayage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_14.png)
-
15 Selecteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_15.png)
-
16 Mandrin roul. arb.prim.D-sec.G
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_16.png)
-
17 Groupe démarreur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_17.png)
-
18 Carters
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_18.png)
-
19 Carburateur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_19.png)
-
2 Fourche Av.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_2.png)
-
20 Volant magnétique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_20.png)
-
21 Groupe echappement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_21.png)
-
22 Pompe huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_22.png)
-
23 Installation refroidissement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_23.png)
-
24 Accessoires
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_24.png)
-
3 Fourche arriere - Amortisseur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_3.png)
-
4 Réservoir
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_4.png)
-
5 Chassis
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_5.png)
-
6 Guidon - Commandes
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_6.png)
-
7 Circuit electrique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_7.png)
-
8 Roue Av.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_8.png)
-
9 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_9.png)
