Vehicle Exploded View - DERBI SENDA R 50 SENDA R DRD PRO 2005-2007 E2 3ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

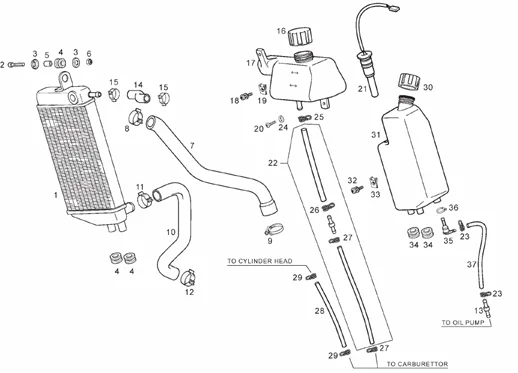

Tables : 12 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1083/SENDA_R_DRD_PRO_2005-2007_E2_3ed_12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/8/5/img/187885.JPG)
1 |
867523 - RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
2 |
AP8150165 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/3/img/63883.jpg)
3 |
00D01500552 - CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
4 |
SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/2/img/63882.jpg)
5 |
SPACER-RING NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00D01500471- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
6 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/7/1/img/64871.jpg)
7 |
DURITE/TUYAU REFROIDISSEMENT ORIGINE DERBI 50 SENDA 2006>2010/ GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H03808021- More informationQuantity required : 1 |
||||||
8 |
00H03801751 - ABRAZ.NORMA COBRA 22/8 W4 More informationQuantity required : 1 |
||||||
|
9 |
00H03802751 - COLLIER More informationQuantity required : 1 |
||||||
|
10 |
00H03805041 - TUYAU More informationQuantity required : 1 |
||||||
|
11 |
00H03801751 - ABRAZ.NORMA COBRA 22/8 W4 More informationQuantity required : 1 |
||||||
|
12 |
00H03802091 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/9/8/img/64098.jpg)
13 |
00G03701031 - RACCORD ENTREE DIHUILE More informationQuantity required : 1 |
||||||
|
14 |
00H03804491 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/0/8/img/64108.jpg)
15 |
00G03801701 - BRIDE TUBE RESPIRATION R?SERVO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
16 |
COOLANT TANK CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -623673- More informationQuantity required : 1 |
||||||
|
17 |
00H03805501 - RÉSERVOIR À EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/5/1/img/64151.jpg)
18 |
SCREW - FOR IGNITION COIL FASTENING 6X20 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G06800021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
19 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/1/img/63661.jpg)
20 |
00008051200 - VIS 5X12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/3/8/img/70338.jpg)
21 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR/APRILIA 50 SX, RX 2006> -867531- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/8/9/img/187889.JPG)
22 |
00H03802521 - SCTO.TUBO DEPO.EXP-CARB.R DRD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
23 |
00H00400501 - CRAMPON ELASTIQUE TUBE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
24 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
|
25 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
|
26 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
|
27 |
00H00400501 - CRAMPON ELASTIQUE TUBE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/3/img/64853.jpg)
28 |
COOLANT HOSE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03801961 More informationQuantity required : 1 |
||||||
|
29 |
00H00400501 - CRAMPON ELASTIQUE TUBE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/9/0/img/187890.JPG)
30 |
00H03703061 - BOUCHON DE RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/9/1/img/187891.JPG)
31 |
00H03707081 - RÉSERVOIR D'HUILE More informationQuantity required : 1 |
||||||
|
32 |
SCREW - FOR IGNITION COIL FASTENING 6X20 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G06800021- More informationQuantity required : 1 |
||||||
|
33 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
34 |
SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020- More informationQuantity required : 1 |
||||||
|
35 |
00H03701411 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
36 |
00008204500 - COLLIER COBRA 21/8 W4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/8/9/2/img/187892.JPG)
37 |
00H04100921 - TUBO DPSTO. ACEITE A RACORD More informationQuantity required : 1 |
