Vehicle Exploded View - DERBI SENDA R 50 SENDA R DRD PRO 2005-2007 E2 3ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

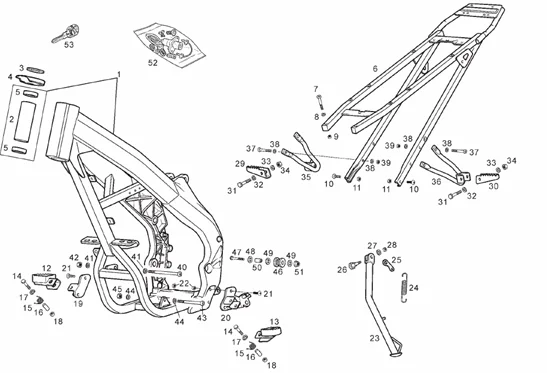

Tables : 1 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1083/SENDA_R_DRD_PRO_2005-2007_E2_3ed_1.png)
1 |
8647555 - R-CTO CUADRO C/COJINETES SDA DRD PRO 07 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/4/2/img/65042.JPG)
2 |
00H06303401 - TUBE SEPARATION ROULEMENT D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/2/img/63672.jpg)
3 |
STEERING FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00008902630- More informationQuantity required : 1 |
||||||
|
4 |
00H00204761 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/6/img/63606.jpg)
5 |
STEERING COLUMN BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00000056205- More informationQuantity required : 1 |
||||||
|
6 |
00H00110341A - CADRE POST, More informationQuantity required : 1 |
||||||
|
7 |
00004184001 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
8 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/7/img/63767.jpg)
9 |
00262080022 - ECROU More informationQuantity required : 1 |
||||||
|
11 |
00262080022 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/0/8/2/9/img/190829.JPG)
12 |
00H02203301A - SCTO.ESTR.DR.PILOTO GR.SARG DRD PRO50(C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/0/8/3/0/img/190830.JPG)
13 |
00H02203311A - SCTO.ESTR.IZ.PILOTO GR.SAR.DRD PRO 50(C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/3/img/63713.jpg)
14 |
SCREW - FOR FOOTREST M8X40 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00022084021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/4/img/64954.jpg)
15 |
RIDER FOOTREST SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H04903292- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/8/img/63628.jpg)
16 |
RING FOR FOOTREST LINK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RX, SX -00002215152- More informationQuantity required : 1 |
||||||
|
17 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
18 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
19 |
00H01505121A - APPUI REPOSE PIED More informationQuantity required : 1 |
||||||
|
20 |
00H01502131A - APPUI REPOSE PIED More informationQuantity required : 1 |
||||||
|
22 |
00262080022 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/0/8/3/1/img/190831.JPG)
23 |
00H00828011A - SCTO.PATA CABLLTE.GR.SARG.SD 50CC (C) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/5/img/64315.jpg)
24 |
SPRING - FOR STAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00804081- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
25 |
STAND SPRING PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -2B004468- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/6/img/64316.jpg)
26 |
SCREW - FOR STAND FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00805072- More informationQuantity required : 1 |
||||||
|
27 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
|
28 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/4/img/63884.jpg)
29 |
RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01520096- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/5/img/63885.jpg)
30 |
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01520456- More informationQuantity required : 1 |
||||||
|
31 |
SCREW - FOR FOOTREST M8X40 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00022084021- More informationQuantity required : 1 |
||||||
|
33 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
|
34 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
35 |
00H00106701A - SCTO.SOPTE.ESTRIB.PASJ.DR.GR.SARG.DRD(C More informationQuantity required : 1 |
||||||
|
36 |
00H00106671A - SUPPORT More informationQuantity required : 1 |
||||||
|
37 |
00004184001 - VIS More informationQuantity required : 1 |
||||||
|
38 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
|
39 |
00262080022 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/9/img/63789.jpg)
41 |
WASHER FOR MOTOR SUPPORT AXLE D10.5 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00402100001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
42 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 1 |
||||||
|
43 |
00H02510271 - VIS More informationQuantity required : 1 |
||||||
|
44 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
|
45 |
00262080022 - ECROU More informationQuantity required : 1 |
||||||
|
47 |
00002085531 - TORN.C/ALL.8M125X55 DIN912 12.9 DAC More informationQuantity required : 1 |
||||||
|
48 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/5/img/63655.jpg)
49 |
SPACER- FOR REAR BRAKE COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00005527540- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/1/img/63631.jpg)
50 |
SPACER- FOR CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002518790- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/0/img/63720.jpg)
51 |
00026008001 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/7/4/6/img/187746.JPG)
52 |
00H05911251 - ENS. KIT SERRURES SANS LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/1/0/img/63910.jpg)
53 |
KEYBLANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2000>2009 -00F01811411- More informationQuantity required : 1 |
