Vehicle Exploded View - DERBI SENDA HYP 50 SENDA HYP DRD EVO LTD EDITION 2008 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

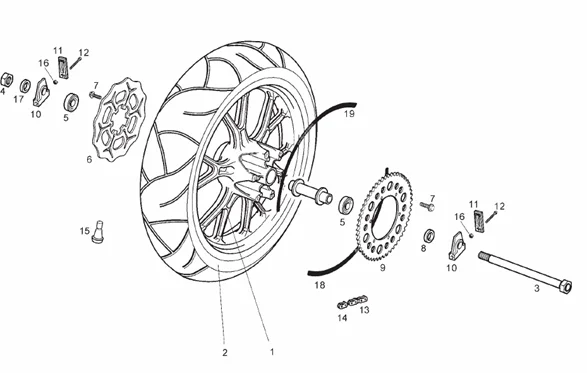

Tables : 9 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1078/SENDA_HYP_DRD_EVO_LTD_EDITION_2008_E2_9.png)
1 |
865575 - CTO.LLANTA TRAS.DRD EVO LTD.EDIT More informationQuantity required : 1 |
||||||
|
2 |
899860 - PNEU AR SAVATECH 130/70X17" More informationQuantity required : 1 |
||||||
|
3 |
00H01308201 - AXE ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
5 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345- More informationQuantity required : 1 |
||||||
|
6 |
867116 - KIT DISQUE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
7 |
2B004560 - VIS More informationQuantity required : 1 |
||||||
|
8 |
865587 - CASQ.SEPARAD.LADO PLATO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/2/5/img/69925.jpg)
9 |
REAR CHAIN SPROCKET "PIAGGIO GENUINE PART" APRILIA 50 RS4 2011>, RX 2011>, SX 2014>/GILERA 50 SMT 2011> -86182R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/9/3/img/64493.jpg)
10 |
CHAIN TENSIONER SLIDE "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01306811- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/8/img/64488.jpg)
11 |
REAR WHEEL TENSIONER COVER "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01306171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/7/2/img/64472.jpg)
12 |
00H01302491 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/6/img/72856.jpg)
13 |
CHAIN 1/2" X 1/4" - 130 LINKS "PIAGGIO GENUINE PART" APRILIA 50 RS4 2011>, RX 2006>, SX 2006>/GILERA 50 SMT 2003>, RCR 2003> -B046219- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/3/img/64533.jpg)
14 |
00H01501212 - ATTACHE RAPIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
15 |
270991 - VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
16 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
17 |
FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000- More informationQuantity required : 1 |
||||||
|
18 |
8655800001 - CALCA LLANTA RACING ROJ.EVO LTD.EDIT More informationQuantity required : 1 |
||||||
|
19 |
8655800002 - CALCA LLANTA COMPETITION ROJ.EVO LTD.ED More informationQuantity required : 1 |
