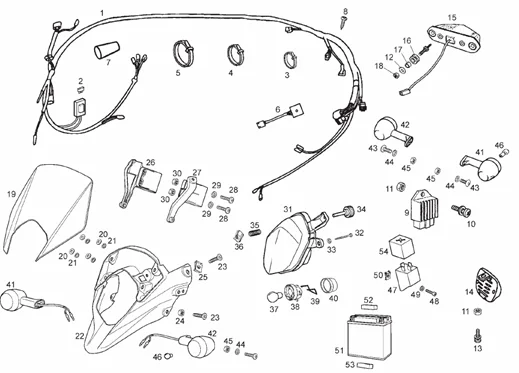

Vehicle Exploded View - DERBI SENDA HYP 50 SENDA HYP DRD EVO LTD EDITION 2008 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)
Tables : 7 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1078/SENDA_HYP_DRD_EVO_LTD_EDITION_2008_E2_7.png)
1 |
865544 - CTO.INSTAL.ELECTR.DRD EVO LTD.EDIT More informationQuantity required : 1 |
|||||||||
|
2 |
00H01001911 - FUSIBLE More informationQuantity required : 1 |
|||||||||
|
3 |
00A00900531 - COLLIER More informationQuantity required : 1 |
|||||||||
|
4 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
5 |
00F00900531 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/7/img/64997.jpg)
6 |
DASHBOARD TIMER "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H05700481 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/4/img/64684.jpg)
7 |
PROTECTION FOR ELECTRIC BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H02300961 More informationQuantity required : 1 |
|||||||||
|
8 |
00011061300 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/8/img/70888.jpg)
9 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2015/APRILIA 50 RS 2006>2016, RX, SX 2006>2016 (RED VERSION) -898891 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
10 |
SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
11 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
12 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
13 |
00D05910081 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/2/img/64382.jpg)
14 |
HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/6/img/64386.jpg)
15 |
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H01009321 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
16 |
SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/2/img/63882.jpg)
17 |
SPACER-RING NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00D01500471 More informationQuantity required : 1 |
|||||||||
|
18 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/8/img/70048.jpg)
19 |
FRONT FAIRING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2011> WHITE -86420600W0B More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
20 |
FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
21 |
WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239 More informationQuantity required : 1 |
|||||||||
|
22 |
864855 - SOPTE.CARCASA FARO EVO 50CC More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
23 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
23 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 1 |
|||||||||
|
24 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
25 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/8/img/151688.jpg)
26 |
FRONT LEFT SUPPORT - UPSIDE DOWN FORK "PIAGGIO GENUINE PART" PIAGGIO GILERA 50 SMT DRIFTING 2018>/APRILIA 50 XS FACTORY 2018> -2B004524 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/7/img/151687.jpg)
27 |
FRONT RIGHT SUPPORT - UPSIDE DOWN FORK "PIAGGIO GENUINE PART" GILERA 50 SMT DRIFTING 2018>/APRILIA 50 XS FACTORY 2018> -2B004523 More informationQuantity required : 1 |
|||||||||
|
28 |
AP8152060 - VIS More informationQuantity required : 1 |
|||||||||
|
29 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001 More informationQuantity required : 1 |
|||||||||
|
30 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/1/1/img/70111.jpg)
31 |
HEADLAMP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -865385 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/8/img/63678.jpg)
32 |
SCREW - (3,6X25) FOR HEADLIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00011032501 More informationQuantity required : 1 |
|||||||||
|
33 |
VIS |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/8/img/64378.jpg)
34 |
SCREW - FOR HEADLIGHT ADJUSTING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H0100310 More informationQuantity required : 1 |
|||||||||
|
35 |
00G02301501 - RESSORT PHARE AVANT More informationQuantity required : 1 |
|||||||||
|
36 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
37 |
LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/1/img/63641.jpg)
38 |
BULB HOLDER - FOR HEADLAMP - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710110 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/2/img/63642.jpg)
39 |
SPRING FOR BULB HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00003710120 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/3/img/65003.jpg)
40 |
HEAD LAMP BULB PROTECTION "PIAGGIO GENUINE PART" 50 SMT, RCR/APRILIA 50 RX, SX -00H05703141 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/8/6/img/69986.jpg)
41 |
FLASHER- FRONT RIGHT/REAR LEFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863008 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/8/7/img/69987.jpg)
42 |
FLASHER- FRONT LEFT/REAR RIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863009 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
43 |
AP8224470 - VIS More informationQuantity required : 1 |
|||||||||
|
44 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001 More informationQuantity required : 1 |
|||||||||
|
45 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060 More informationQuantity required : 1 |
|||||||||
|
46 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
47 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R More informationQuantity required : 1 |
|||||||||
|
48 |
00000004612 - VIS A TETE ALLEN 6M100X12. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
49 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
50 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
|||||||||
|
51 |
00G03300401 - BATTERIE.12V. 3AH. More informationQuantity required : 1 |
|||||||||
|
52 |
00H01811471 - TOPE BATERIA DRD PRO 50CC More informationQuantity required : 1 |
|||||||||
|
54 |
865605 - PROTECT.RELE ARRANQ.EVO LTD.EDIT More informationQuantity required : 1 |
|||||||||
