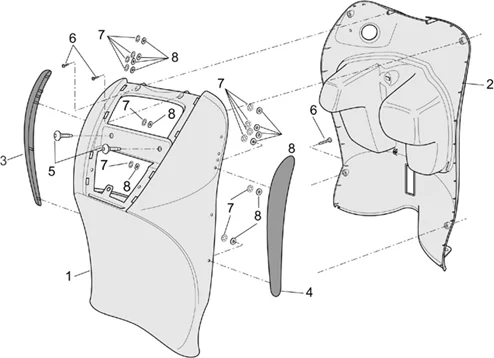

Chassis : 28.07 CARROSSERIE AV. III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/586/Scarabeo_50_Ditech_2001-2004_28.07.PNG)
1 |
AP8258064 - TABLIER AV. PEINT ROUGE More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258348 - TABLIER AV BLANC V. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258381 - TABLIER AV BLANC; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258392 - TABLIER AV. PEINT BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258433 - TABLIER AV.P.BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258447 - TABLIER AVANT PEINT ORANGE More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258469 - TABLIER AV LEMON A. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258633 - TABLIER AVANT PEINT NOIR; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258854 - TABLIER AV VERT More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258887 - TABLIER AV. PEINT BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258900 - TABLIER AV BEIGE More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258911 - TABLIER AV. PEINT BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268098 - SCUDO ANT.SUP.V.GRIGIO D. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268111 - SCUDO ANT.SUP.V.SILVER OA. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8239872 - TABLIER AVANT SUP. BLANC More informationQuantity required : 1 |
|||||||||
|
1 |
AP8178861 - SCUDO ANT.SUP.V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268175 - SCUDO ANT.SUP.V.BLU MAIN More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268177 - SCUDO ANT.SUP.V.BIANCO V. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258402 - TABLIER INT.BLANC V. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258404 - TABLIER INTERNE BLEU; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258406 - TABLIER INTERNE BLANC; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258409 - TABLIER INT. ROUGE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258438 - TABLIER INTERNE BLEU More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258452 - TABLIER INTERNE BEIGE More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258474 - TABLIER INT.LEMON A. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258639 - TABLIER INTERNE NOIR More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258860 - TABLIER INT. VERT More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258893 - TABLIER INTERNE BLEU More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258904 - TABLIER INTERNE BEIGE More informationQuantity required : 1 |
|||||||||
|
2 |
AP8258915 - TABLIER INTERNE BLEU More informationQuantity required : 1 |
|||||||||
|
2 |
AP8268104 - SCUDO INTERNO V.GRIGIO DIAM. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8268116 - SCUDO INTERNO V.SILVER OASIS More informationQuantity required : 1 |
|||||||||
|
2 |
AP8268440 - SCUDO INT.V.BIA.APR.N/DEC More informationQuantity required : 1 |
|||||||||
|
3 |
P/COUPS D GRIS=8258246 |
|||||||||
|
3 |
AP8258863 - PARE-CHOC D GRIS More informationQuantity required : 1 |
|||||||||
|
4 |
P/ COUPS G GRIS=8258247 |
|||||||||
|
4 |
AP8258864 - PARE-CHOC G GRIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
5 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
7 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
8 |
RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504 More informationQuantity required : 12 |
|||||||||
|
9 |
GU80763600 - SIRENA More informationQuantity required : 1 |
|||||||||
|
10 |
GU80744200 - STAFFA SIRENA More informationQuantity required : 1 |
|||||||||
