Vehicle Exploded View - APRILIA SCARABEO DITECH 50 2001-2004 APRILIA

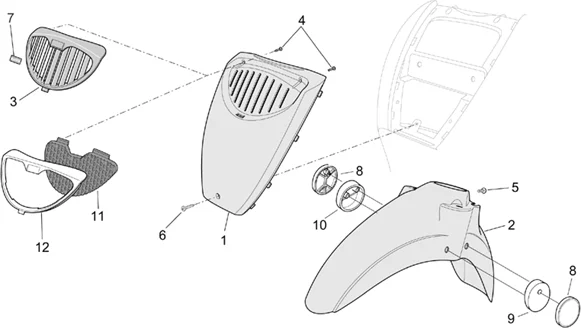

Chassis : 28.06 CARROSSERIE AV. II
Carrosserie av. II
Search
AP8258386 - FRONTAL BLANC

1
P2R reference P2R reference 59170
Maker reference Maker reference AP8258386

AP8258386 - FRONTAL BLANC

More information

Quantity required : 1

AP8258399 - FRONTAL BLEU

1
P2R reference P2R reference 59177
Maker reference Maker reference AP8258399

AP8258399 - FRONTAL BLEU

More information

Quantity required : 1

AP8258443 - BOUCLIERBL.

1
P2R reference P2R reference 59208
Maker reference Maker reference AP8258443

AP8258443 - BOUCLIERBL.

More information

Quantity required : 1

AP8258455 - FRONTAL ORANGE

1
P2R reference P2R reference 59218
Maker reference Maker reference AP8258455

AP8258455 - FRONTAL ORANGE

More information

Quantity required : 1

AP8258477 - BOUCLIER, LEMON A.

1
P2R reference P2R reference 59230
Maker reference Maker reference AP8258477

AP8258477 - BOUCLIER, LEMON A.

More information

Quantity required : 1

AP8258643 - FRONTAL NOIR

1
P2R reference P2R reference 59329
Maker reference Maker reference AP8258643

AP8258643 - FRONTAL NOIR

More information

Quantity required : 1

AP8258853 - FRONTAL VERT;

1
P2R reference P2R reference 59480
Maker reference Maker reference AP8258853

AP8258853 - FRONTAL VERT;

More information

Quantity required : 1

AP8258874 - FRONTAL BLANC

1
P2R reference P2R reference 59493
Maker reference Maker reference AP8258874

AP8258874 - FRONTAL BLANC

More information

Quantity required : 1

AP8258886 - FRONTAL BLEU

1
P2R reference P2R reference 59499
Maker reference Maker reference AP8258886

AP8258886 - FRONTAL BLEU

More information

Quantity required : 1

AP8258899 - FRONTAL SILVER

1
P2R reference P2R reference 59511
Maker reference Maker reference AP8258899

AP8258899 - FRONTAL SILVER

More information

Quantity required : 1

AP8258910 - FRONTAL BLEU

1
P2R reference P2R reference 59520
Maker reference Maker reference AP8258910

AP8258910 - FRONTAL BLEU

More information

Quantity required : 1

AP8268096 - SCUDETTO V.NERO DARKNESS

1
P2R reference P2R reference 59857
Maker reference Maker reference AP8268096

AP8268096 - SCUDETTO V.NERO DARKNESS

More information

Quantity required : 1

AP8268110 - SCUDETTO V.TECHNO GREY

1
P2R reference P2R reference 59868
Maker reference Maker reference AP8268110

AP8268110 - SCUDETTO V.TECHNO GREY

More information

Quantity required : 1

SCUDETTO V.BIA.APR.N/DEC

1
P2R reference P2R reference
Maker reference Maker reference AP8268436

SCUDETTO V.BIA.APR.N/DEC

AP8258343 - FRONTAL ROUGE

1
P2R reference P2R reference 59145
Maker reference Maker reference AP8258343

AP8258343 - FRONTAL ROUGE

More information

Quantity required : 1

AP8258354 - BOUCLIER, BLANC V.

1
P2R reference P2R reference 59152
Maker reference Maker reference AP8258354

AP8258354 - BOUCLIER, BLANC V.

More information

Quantity required : 1

AP8226677 - GARDE-BOUE AVANT PEINT ROUGE;

2
P2R reference P2R reference 57691
Maker reference Maker reference AP8226677

AP8226677 - GARDE-BOUE AVANT PEINT ROUGE;

More information

Quantity required : 1

Garde-boue AV silver

2
P2R reference P2R reference
Maker reference Maker reference AP8226810

Garde-boue AV silver

AP8226854 - PARAFANGO ANT V.BIA.APR.N/DEC

2
P2R reference P2R reference 57809
Maker reference Maker reference AP8226854

AP8226854 - PARAFANGO ANT V.BIA.APR.N/DEC

More information

Quantity required : 1

AP8226743 - GARDE-BOUE AV NOIR;

2
P2R reference P2R reference 57732
Maker reference Maker reference AP8226743

AP8226743 - GARDE-BOUE AV NOIR;

More information

Quantity required : 1

AP8226744 - GARDE-BOUE AV NOIR;

2
P2R reference P2R reference 57733
Maker reference Maker reference AP8226744

AP8226744 - GARDE-BOUE AV NOIR;

More information

Quantity required : 1

AP8226702 - GARDE-BOUE AVANT P.BLANC V.;

2
P2R reference P2R reference 57704
Maker reference Maker reference AP8226702

AP8226702 - GARDE-BOUE AVANT P.BLANC V.;

More information

Quantity required : 1

AP8226711 - GARDE-BOUE AVANT BLANC;

2
P2R reference P2R reference 57710
Maker reference Maker reference AP8226711

AP8226711 - GARDE-BOUE AVANT BLANC;

More information

Quantity required : 1

AP8226714 - GARDE-BOUE AV BLEU;

2
P2R reference P2R reference 57712
Maker reference Maker reference AP8226714

AP8226714 - GARDE-BOUE AV BLEU;

More information

Quantity required : 1

AP8226720 - GARDE-B AV. BLEU;

2
P2R reference P2R reference 57714
Maker reference Maker reference AP8226720

AP8226720 - GARDE-B AV. BLEU;

More information

Quantity required : 1

AP8226722 - GARDE-BOUE AVANT PEINT ORANGE;

2
P2R reference P2R reference 57715
Maker reference Maker reference AP8226722

AP8226722 - GARDE-BOUE AVANT PEINT ORANGE;

More information

Quantity required : 1

AP8226724 - GARDE-BOUE AVANT P.LEMON A.;

2
P2R reference P2R reference 57716
Maker reference Maker reference AP8226724

AP8226724 - GARDE-BOUE AVANT P.LEMON A.;

More information

Quantity required : 1

AP8226729 - GARDE-BOUE AVANT PEINT ROUGE;

2
P2R reference P2R reference 57719
Maker reference Maker reference AP8226729

AP8226729 - GARDE-BOUE AVANT PEINT ROUGE;

More information

Quantity required : 1

AP8226736 - GARDE-BOUE AV BLEU;

2
P2R reference P2R reference 57725
Maker reference Maker reference AP8226736

AP8226736 - GARDE-BOUE AV BLEU;

More information

Quantity required : 1

AP8226737 - GARDE-BOUE AVANT P.BLANC V.;

2
P2R reference P2R reference 57726
Maker reference Maker reference AP8226737

AP8226737 - GARDE-BOUE AVANT P.BLANC V.;

More information

Quantity required : 1

AP8226738 - GARDE-BOUE AVANT P.LEMON A.;

2
P2R reference P2R reference 57727
Maker reference Maker reference AP8226738

AP8226738 - GARDE-BOUE AVANT P.LEMON A.;

More information

Quantity required : 1

AP8226739 - GARDE-B AV. BLEU;

2
P2R reference P2R reference 57728
Maker reference Maker reference AP8226739

AP8226739 - GARDE-B AV. BLEU;

More information

Quantity required : 1

AP8226741 - GARDE-BOUE AVANT PEINT ORANGE;

2
P2R reference P2R reference 57730
Maker reference Maker reference AP8226741

AP8226741 - GARDE-BOUE AVANT PEINT ORANGE;

More information

Quantity required : 1

AP8226773 - GARDE-BOUE AVANT VERT;

2
P2R reference P2R reference 57756
Maker reference Maker reference AP8226773

AP8226773 - GARDE-BOUE AVANT VERT;

More information

Quantity required : 1

AP8226774 - GARDE-BOUE AVANT VERT;

2
P2R reference P2R reference 57757
Maker reference Maker reference AP8226774

AP8226774 - GARDE-BOUE AVANT VERT;

More information

Quantity required : 1

AP8226776 - GARDE-BOUE AV BLEU;

2
P2R reference P2R reference 57759
Maker reference Maker reference AP8226776

AP8226776 - GARDE-BOUE AV BLEU;

More information

Quantity required : 1

AP8226777 - GARDE-BOUE AV BLEU;

2
P2R reference P2R reference 57760
Maker reference Maker reference AP8226777

AP8226777 - GARDE-BOUE AV BLEU;

More information

Quantity required : 1

AP8226779 - GARDE-BOUE AVANT BEIGE;

2
P2R reference P2R reference 57762
Maker reference Maker reference AP8226779

AP8226779 - GARDE-BOUE AVANT BEIGE;

More information

Quantity required : 1

AP8226780 - GARDE-BOUE AVANT BEIGE;

2
P2R reference P2R reference 57763
Maker reference Maker reference AP8226780

AP8226780 - GARDE-BOUE AVANT BEIGE;

More information

Quantity required : 1

AP8226782 - GARDE-BOUE AV BLEU;

2
P2R reference P2R reference 57764
Maker reference Maker reference AP8226782

AP8226782 - GARDE-BOUE AV BLEU;

More information

Quantity required : 1

AP8226783 - GARDE-BOUE AV BLEU;

2
P2R reference P2R reference 57765
Maker reference Maker reference AP8226783

AP8226783 - GARDE-BOUE AV BLEU;

More information

Quantity required : 1

FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO GREY -AP8226806

2
P2R reference P2R reference 57777
Maker reference Maker reference AP8226806

FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO GREY -AP8226806

More information

Quantity required : 1

AP8226807 - PARAFANGO ANT.V.GRIGIO DIAM.

2
P2R reference P2R reference 57778
Maker reference Maker reference AP8226807

AP8226807 - PARAFANGO ANT.V.GRIGIO DIAM.

More information

Quantity required : 1

AP8226809 - PARAFANGO ANT.V.SILVER OASIS

2
P2R reference P2R reference 57780
Maker reference Maker reference AP8226809

AP8226809 - PARAFANGO ANT.V.SILVER OASIS

More information

Quantity required : 1

Garde-boue avant blanc

2
P2R reference P2R reference
Maker reference Maker reference AP8226813

Garde-boue avant blanc

AP8139731 - GRILLE CHROMEE;

3
P2R reference P2R reference 49392
Maker reference Maker reference AP8139731

AP8139731 - GRILLE CHROMEE;

More information

Quantity required : 1

AP8150421 - VIS TARAUD POUR PLAST. INOX

4
P2R reference P2R reference 71879
Maker reference Maker reference AP8150421

AP8150421 - VIS TARAUD POUR PLAST. INOX

More information

Quantity required : 2

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

5
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 2

2B014101 - INOX HEXAGON COCKET SCREWS M5X12

5
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

2B014101 - INOX HEXAGON COCKET SCREWS M5X12

More information

Quantity required : 2

AP8150423 - VIS

6
P2R reference P2R reference 71880
Maker reference Maker reference AP8150423

AP8150423 - VIS

More information

Quantity required : 1

"Plaque ""Aprilia""";

7
P2R reference P2R reference
Maker reference Maker reference AP8167591

"Plaque ""Aprilia""";

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164

8
P2R reference P2R reference 72325
Maker reference Maker reference AP8224164

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164

More information

Quantity required : 2

AP8249135 - SUPPORT CATAD.AV.G.;

9
P2R reference P2R reference 58741
Maker reference Maker reference AP8249135

AP8249135 - SUPPORT CATAD.AV.G.;

More information

Quantity required : 1

AP8249134 - SUPPORT CATAD.AV.D.;

10
P2R reference P2R reference 58740
Maker reference Maker reference AP8249134

AP8249134 - SUPPORT CATAD.AV.D.;

More information

Quantity required : 1

AP8158915 - GRILLE;

11
P2R reference P2R reference 51899
Maker reference Maker reference AP8158915

AP8158915 - GRILLE;

More information

Quantity required : 1

AP8258877 - GRILLE GRIS

11
P2R reference P2R reference 59496
Maker reference Maker reference AP8258877

AP8258877 - GRILLE GRIS

More information

Quantity required : 1

AP8158914 - ENJOLIV. GRILLE SILVER;

12
P2R reference P2R reference 51898
Maker reference Maker reference AP8158914

AP8158914 - ENJOLIV. GRILLE SILVER;

More information

Quantity required : 1

Enjoliv. grille chromé

12
P2R reference P2R reference
Maker reference Maker reference AP8268097

Enjoliv. grille chromé

All the exploded views of this vehicle

Filter :
Or choose :
