Vehicle Exploded View - APRILIA SCARABEO 4T 50 2V E2 2002-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

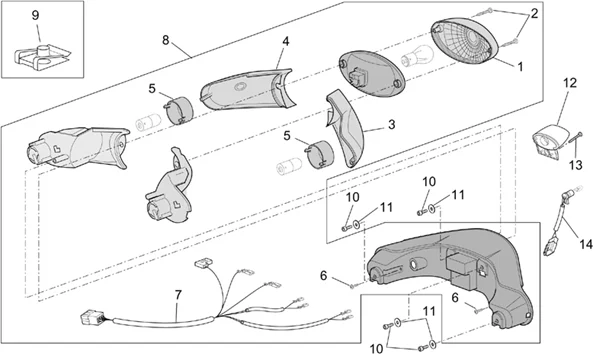

Chassis : 28.27 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/592/Scarabeo_50_4T_2V_E2_2002-2006_28.27.PNG)
1 |
AP8212679 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
2 |
AP8224434 - VIS More informationQuantity required : 2 |
||||||
|
3 |
AP8224436 - GLACE CLIGN. AR G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/9/8/img/57398.jpg)
4 |
AP8224435 - GLACE CLIGN. AR D More informationQuantity required : 1 |
||||||
|
5 |
AP8224439 - CARTER INT. More informationQuantity required : 2 |
||||||
|
6 |
Vis |
||||||
|
7 |
AP8224441 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
8 |
AP8224416 - FEU ARRIERE, BLANC V. More informationQuantity required : 1 |
||||||
|
8 |
AP8224494 - FEU AR GRIS; More informationQuantity required : 1 |
||||||
|
8 |
AP8224495 - FEU ARRIERE, ROUGE; More informationQuantity required : 1 |
||||||
|
8 |
AP8224496 - FEU AR BLEU; More informationQuantity required : 1 |
||||||
|
8 |
AP8224511 - FEU AR BLEU; More informationQuantity required : 1 |
||||||
|
8 |
AP8224597 - FANALE POST.V.GRIGIO DIAM. More informationQuantity required : 1 |
||||||
|
8 |
AP8224598 - FANALE POST.V.SILVER OASIS More informationQuantity required : 1 |
||||||
|
8 |
AP8224599 - FANALE POST.V.BIANCO AP. More informationQuantity required : 1 |
||||||
|
8 |
AP8258642 - FEU AR NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
9 |
AP8102381 - CLIP More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
10 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
11 |
AP8150011 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
12 |
NUMBER PLATE LIGHT "PIAGGIO GENUINE PART" COMMON TO THE MOTO APRILIA + MOTO-GUZZI RANGE -85256R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
13 |
AP8152351 - VIS More informationQuantity required : 1 |
||||||
|
14 |
AP8127266 - CABLAGE LUMIERE PLAQUE; More informationQuantity required : 1 |
