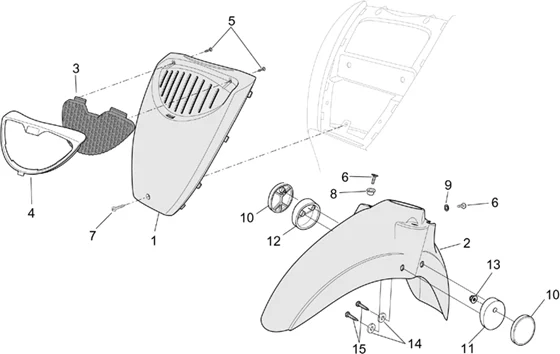

Chassis : 28.06 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/592/Scarabeo_50_4T_2V_E2_2002-2006_28.06.PNG)
1 |
AP8258712 - FRONTAL GRIS More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258754 - FRONTAL ROUGE More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258764 - FRONTAL BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258874 - FRONTAL BLANC More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258886 - FRONTAL BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268096 - SCUDETTO V.NERO DARKNESS More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268110 - SCUDETTO V.TECHNO GREY More informationQuantity required : 1 |
|||||||||
|
1 |
SCUDETTO V.BIA.APR.N/DEC |
|||||||||
|
1 |
AP8258643 - FRONTAL NOIR More informationQuantity required : 1 |
|||||||||
|
2 |
AP8226702 - GARDE-BOUE AVANT P.BLANC V.; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8226737 - GARDE-BOUE AVANT P.BLANC V.; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/7/3/7/img/57737.jpg)
2 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 50-125 SCARABEO GREY -AP8226750 More informationQuantity required : 1 |
|||||||||
|
2 |
AP8226754 - GARDE-BOUE AVANT PEINT ROUGE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8226756 - GARDE-BOUE AV BLEU; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8226776 - GARDE-BOUE AV BLEU; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8226777 - GARDE-BOUE AV BLEU; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/7/7/7/img/57777.jpg)
2 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO GREY -AP8226806 More informationQuantity required : 1 |
|||||||||
|
2 |
AP8226809 - PARAFANGO ANT.V.SILVER OASIS More informationQuantity required : 1 |
|||||||||
|
2 |
AP8226854 - PARAFANGO ANT V.BIA.APR.N/DEC More informationQuantity required : 1 |
|||||||||
|
2 |
AP8226743 - GARDE-BOUE AV NOIR; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8158915 - GRILLE; More informationQuantity required : 1 |
|||||||||
|
4 |
Enjoliv. grille chromé |
|||||||||
|
4 |
AP8158914 - ENJOLIV. GRILLE SILVER; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
5 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
6 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
7 |
AP8150423 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
8 |
SHOULDER WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO 125 CC APRILIA/MOTO-GUZZI BREVA, NORGE, STELVIO -AP8121096 More informationQuantity required : 1 |
|||||||||
|
9 |
AP8144274 - ENTRETOISE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/4/img/72324.jpg)
10 |
AP8224163 - CATADIOPTRE, AMBRE; More informationQuantity required : 2 |
|||||||||
|
11 |
AP8249135 - SUPPORT CATAD.AV.G.; More informationQuantity required : 1 |
|||||||||
|
12 |
AP8249134 - SUPPORT CATAD.AV.D.; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
13 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
14 |
AP8150011 - RONDELLE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
15 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 4 |
|||||||||
