Vehicle Exploded View - APRILIA SCARABEO 2T 50 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

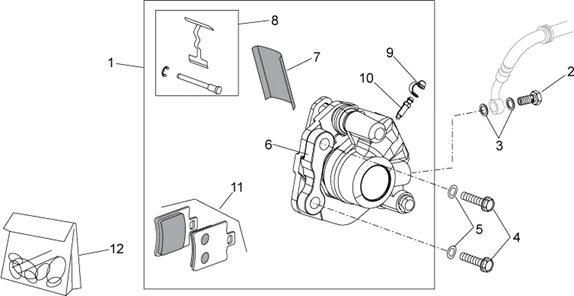

Chassis : 28.25 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/599/Scarabeo_50_2T_2014_28.25.PNG)
1 |
665914 - PINCE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
2 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
3 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
4 |
AP8152289 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
5 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 2 |
||||||
|
6 |
600735 - SUPPORT More informationQuantity required : 1 |
||||||
|
7 |
AP8213592 - COPERCHIO PINZA FRENO More informationQuantity required : 1 |
||||||
|
8 |
AP8213591 - PERNO+MOLLA PINZA More informationQuantity required : 1 |
||||||
|
9 |
AP8213575 - CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
|
10 |
AP8213589 - SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/1/img/68011.jpg)
11 |
BRAKE PADS - "PIAGGIO GENUINE PART" 50 NRG POWER 2007> FRONT/GILERA 50 STALKER FRONT (PAIR) -647171- More informationQuantity required : 1 |
||||||
|
12 |
AP8213579 - KIT REVISIONE PINZA More informationQuantity required : 1 |
