Vehicle Exploded View - APRILIA SCARABEO 2T 50 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

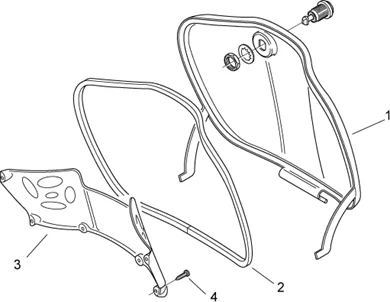

Chassis : 28.11 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/599/Scarabeo_50_2T_2014_28.11.PNG)
1 |
67288500000XA6 - ABATTANT BATTERIA More informationQuantity required : 1 |
||||||
|
1 |
67288500000XB6 - ABATTANT BATTERIA More informationQuantity required : 1 |
||||||
|
1 |
67288500000XN1 - ABATTANT BATTERIA More informationQuantity required : 1 |
||||||
|
1 |
67288500000XP5 - ABATTANT BATTERIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/3/img/72903.jpg)
2 |
BOOT DOOR GASKET "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125-350 X10, BEVERLY -CM006311- More informationQuantity required : 1 |
||||||
|
3 |
AP8148736 - GRILLE INTERNE PORTE-OBJETS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
4 |
SCREW - BODY PARTS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO GUZZI M3X12 -AP8152334- More informationQuantity required : 6 |
