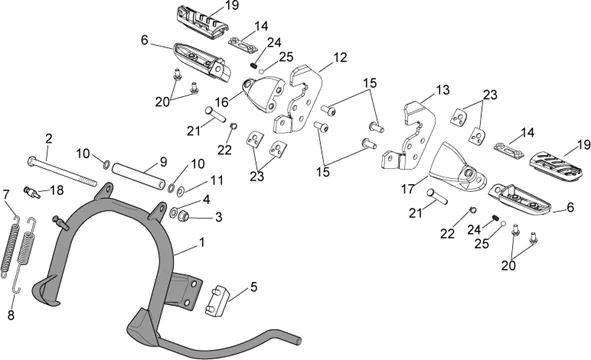

Chassis : 28.02 REPOSE-PIEDS BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/620/Scarabeo_100_4T_E3_2006-2009_28.02.PNG)
1 |
856181 - BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/7/img/67417.jpg)
1 |
CENTER STAND "PIAGGIO GENUINE PART" 50-125 LIBERTY 4STROKE 1998>2012/APRILIA 50 SCARABEO 4STROKE 2002>2012 -600183 More informationQuantity required : 1 |
||||||
|
2 |
AP8150438 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
3 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
4 |
AP8152176 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/4/img/67224.jpg)
5 |
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" FOR MAXISCOOTERS RANGE -581560 More informationQuantity required : 1 |
||||||
|
6 |
AP8145007 - PEDANE PASSEGGERO -COPPIA More informationQuantity required : 1 |
||||||
|
7 |
AP8221332 - RESS.RETOUR BEQ.INT. More informationQuantity required : 1 |
||||||
|
8 |
AP8221333 - RESS.RETOUR BEQ.EXT. More informationQuantity required : 1 |
||||||
|
9 |
AP8221331 - ENTRETOISE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
10 |
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
11 |
AP8121697 - RESSORT A GODET More informationQuantity required : 1 |
||||||
|
12 |
CM220202 - BRACKET BRAKE PEDAL More informationQuantity required : 1 |
||||||
|
13 |
CM220201 - BRACKET BRAKE PEDAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/1/img/73471.jpg)
14 |
FOOTREST PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -GU32441210 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/5/img/50945.jpg)
15 |
AP8152058 - VIS More informationQuantity required : 4 |
||||||
|
16 |
CM220102 - BRACKET BRAKE PEDAL More informationQuantity required : 1 |
||||||
|
17 |
CM220101 - BRACKET BRAKE PEDAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/3/img/66643.jpg)
18 |
483785 - PIVOT RESSORT DE BEQUILLE More informationQuantity required : 1 |
||||||
|
19 |
AP8144753 - GOMMA PEDANE -COPPIA- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
20 |
AP8152277 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/3/img/71473.jpg)
21 |
FOOTREST PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI/APRILIA -AP8121567 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
22 |
AP8152409 - ANNEAU D'ARR?T RAD. More informationQuantity required : 2 |
||||||
|
23 |
AP8124451 - PLAQUETTE ELASTIQUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
24 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/4/img/71274.jpg)
25 |
AP8110110 - BILLE D.7 More informationQuantity required : 2 |
