Vehicle Exploded View - APRILIA RX 50 2006-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

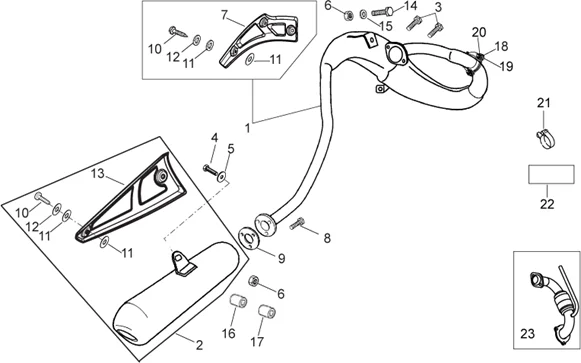

Chassis : 28.12 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/680/RX_50_2006-2010_28.12.PNG)
1 |
861015 - SILENCIEUX AVEC PROTECTION More informationQuantity required : 1 |
||||||
|
2 |
867480 - SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
3 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044 More informationQuantity required : 2 |
||||||
|
4 |
00000004835 - VIS A TETE ALLEN 8M125X35. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
5 |
BUSH/WASHER FASTENING EXHAUST "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -AP8134378 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
6 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/2/6/img/69826.jpg)
7 |
EXHAUST HEAT PROTECTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -861020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
8 |
00D05910081 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/9/2/img/64792.jpg)
9 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H03404321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/0/img/63580.jpg)
10 |
00000012415 - VIS More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/2/img/63922.jpg)
11 |
00F04201361 - RONDELLE More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
12 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 5 |
||||||
|
13 |
861049 - More informationQuantity required : 1 |
||||||
|
14 |
00012081621 - VISA TETE HEXAG.8M125X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
15 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/2/img/63892.jpg)
16 |
00D04900581 - DOUILLE SUPPLEMENTAIRE GOUJON More informationQuantity required : 1 |
||||||
|
17 |
862429 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/0/2/img/70102.jpg)
18 |
GASKET- FROM PIPE TO EXHAUST TO MAIN BODY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2018>/APRILIA 50 RX, SX 2006>, RS 2006> -865093 More informationQuantity required : 1 |
||||||
|
19 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
20 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060 More informationQuantity required : 3 |
||||||
|
21 |
00H03802461 - BRIDE More informationQuantity required : 1 |
||||||
|
22 |
00G05100911 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
23 |
865091 - POT D'ECHAPPEMENT CPL. More informationQuantity required : 1 |
