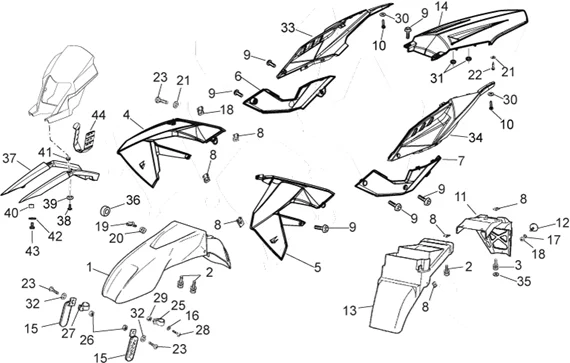

Vehicle Exploded View - APRILIA RX 50 2006-2010

	P2R reference	69838
	Maker reference	861087

861087 - GARDE-BOUE AV.

	P2R reference	41155
	Maker reference	86108700W0R

FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 50 RX, SX RED -86108700W0R-

	P2R reference	69919
	Maker reference	86177200W0N

86177200W0N - GARDE-BOUE AV.

	P2R reference	108599
	Maker reference	2B000015000W0R

2B000015000W0R - GARDE-BOUE AV

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	63696
	Maker reference	000120612005

00012061200 - VIS A TETE RONDE A FENTES C

	P2R reference	41234
	Maker reference	86632000W0N

86632000W0N - FLANC D

	P2R reference	69926
	Maker reference	86189810W2R

86189810W2R - COUVERTURE LAT.DROIT

	P2R reference	41195
	Maker reference	86507100W0N

86507100W0N - AILE D

	P2R reference	70175
	Maker reference	86632900W0N5

86632900W0N5 - AILE DRT.

	P2R reference	41249
	Maker reference	86678300W0N5

86678300W0N5 - QUEUE, NOIR

	P2R reference	41251
	Maker reference	86678500W0N5

86678500W0N5 - FLANC D, NOIR

	P2R reference	37670
	Maker reference	2B000014000W0N

FRONT SIDE COVER - LEFT - "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2011> BLACK -2B000014000W0N-

	P2R reference	69927
	Maker reference	86189910W2R

86189910W2R - PROTECTION LATERAL

	P2R reference	41196
	Maker reference	86507200W0N5

86507200W0N5 - CARENAGE LAT.AV.

	P2R reference	70174
	Maker reference	86632100W0N5

86632100W0N5 - FLANC G

	P2R reference	37670
	Maker reference	86633000W0N5

FRONT SIDE COVER - LEFT - "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2011> BLACK -2B000014000W0N-

	P2R reference	41250
	Maker reference	86678400W0N5

86678400W0N5 - COUVERCLE AVANT

	P2R reference	41252
	Maker reference	86678600W0N5

86678600W0N5 - FLANC G, NOIR

	P2R reference	41147
	Maker reference	861082

861082 - FLANC DROIT

	P2R reference	41149
	Maker reference	86108200W0N

RIGHT SIDE SADDLE COVER "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -86108200W0N

	P2R reference	70104
	Maker reference	86517800W0N5

86517800W0N5 - COUVRE-STR.SELLE D

	P2R reference	41151
	Maker reference	86108300W0N

RIGHT SIDE SADDLE COVER "PIAGGIO GENUINE PART" -86108300W0N

	P2R reference	70105
	Maker reference	86517900W0N5
	Replaced by référence 41151

REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" APRILIA 50 SX, RX BLACK -86517900W0N5

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	64537
	Maker reference	00H01501701

00H01501701 - BOULON BOMBEE ALLEN 6M100X16

	P2R reference	71878
	Maker reference	AP8150420

AP8150420 - VIS TARAUD POUR PLAST. INOX

	P2R reference	64306
	Maker reference	00H00715341

00H00715341 - SUPL. GARDE BOUE AR.

	P2R reference	42151
	Maker reference	894118

LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -894118

	P2R reference	72325
	Maker reference	AP8224164

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H00712341

	P2R reference	69930
	Maker reference	86190210W2R

86190210W2R - COUVERCLE

	P2R reference	41202
	Maker reference	86507600W0B5

SADDLE BACK PROTECTION - CHROME "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -86507600W0B5-

	P2R reference	37666
	Maker reference	2B000012000W0N

2B000012000W0N - PROTECTION

	P2R reference	64616
	Maker reference	00H01802081

REFLECTOR - ON FORK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01802081

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001

	P2R reference	110312
	Maker reference	031040

031040 - VIS

	P2R reference	63585
	Maker reference	000000210405

00000021040 - ECROU 4M70 DIN934 ZNB

	P2R reference	64668
	Maker reference	00H02201591

FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226

	P2R reference	63681
	Maker reference	000110514015

SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401

	P2R reference	63614
	Maker reference	000020520515

SCREW - FOR FAIRINGS FASTENING (5M80X15) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002052051

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	70054
	Maker reference	864454

FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454

	P2R reference	70054
	Maker reference	864454

FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454

	P2R reference	71828
	Maker reference	AP8150165

AP8150165 - VIS

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226

	P2R reference	71888
	Maker reference	AP8150450

WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450

	P2R reference	63725
	Maker reference	000311050005

00031105000 - RONDELLE PLATE M5 DIN125

	P2R reference	37662
	Maker reference	86108400W0N

REAR FLANK -RIGHT- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2013 -2B000010000W0N-

	P2R reference	69928
	Maker reference	86190010W2R

86190010W2R - COUVERCLE LAT. DROITE

	P2R reference	41198
	Maker reference	86507400W0B

86507400W0B - COUVERCLE ARRIERE

	P2R reference	41199
	Maker reference	86507400W0N

86507400W0N - AILE D

	P2R reference	37662
	Maker reference	2B000010000W0N

REAR FLANK -RIGHT- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2013 -2B000010000W0N-

	P2R reference	37661
	Maker reference	2B000010000W0B

REAR FLANK -RIGHT- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006 -2B000010000W0B-

	P2R reference	37663
	Maker reference	2B000011000W0B

REAR FLANK -LEFT- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006 -2B000011000W0B

	P2R reference	41154
	Maker reference	86108500W0N

REAR FLANK -LEFT- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2013 -86108500W0N-

	P2R reference	69929
	Maker reference	86190110W2R

86190110W2R - COUVERCLE LAT.GAUCHE

	P2R reference	41200
	Maker reference	86507500W0B

86507500W0B - COUVERCLE ARRIERE

	P2R reference	41201
	Maker reference	86507500W0N

86507500W0N - FLANC AR. G

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171

	P2R reference	69954
	Maker reference	862449

862449 - DOUILLE

	P2R reference	42152
	Maker reference	89411900XB2

89411900XB2 - TIRANT

	P2R reference	42153
	Maker reference	89411900XN4

MUDGUARD SUPPORT- FRONT "PIAGGIO GENUINE PART" APRILIA 50 SX -89411900XN4

	P2R reference	71957
	Maker reference	AP8152298

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298

	P2R reference	71957
	Maker reference	861179

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298

	P2R reference	72597
	Maker reference	AP9100053

AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5

	P2R reference	71429
	Maker reference	AP8121032

AP8121032 - DOUILLE

	P2R reference	63871
	Maker reference	00D01010821

SILENTBLOC ON REAR SIDE PANEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01010821

	P2R reference	64840
	Maker reference	00H03800722

00H03800722 - RONDELLE

	P2R reference	71970
	Maker reference	AP8152329

AP8152329 - VIS SWP CROIS. BRID.

	P2R reference	42155
	Maker reference	894122

894122 - COUVERCLE
