Vehicle Exploded View - APRILIA RX 50 1995-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

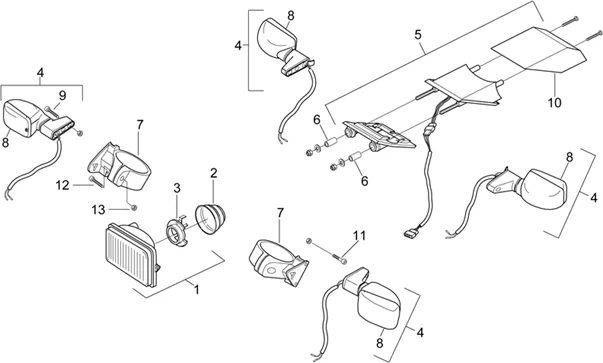

Chassis : 28.31 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/684/RX_50_1995-2002_28.31.PNG)
1 |
AP8112662 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
1 |
AP8212397 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
2 |
AP8220262 - COIFFE PHARE More informationQuantity required : 1 |
||||||
|
3 |
Porte-ampoule |
||||||
|
3 |
Porte-ampoule |
||||||
|
4 |
AP8112687 - INDICATEUR DIRECTION More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/5/9/img/45859.jpg)
5 |
TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX, MX, 50 PEGASO, TUAREG -AP8112531 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
6 |
AP8121795 - DOUILLE EN T More informationQuantity required : 4 |
||||||
|
7 |
AP8220640 - SUPPORTO INDICATORI DIREZIONE More informationQuantity required : 2 |
||||||
|
8 |
AP8112756 - VITRE CLIGNOTANT More informationQuantity required : 4 |
||||||
|
9 |
AP8150160 - VIS More informationQuantity required : 1 |
||||||
|
10 |
AP8112633 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/3/0/img/50830.JPG)
11 |
AP8150053 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/1/img/71831.jpg)
12 |
AP8150176 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
13 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451 More informationQuantity required : 2 |
