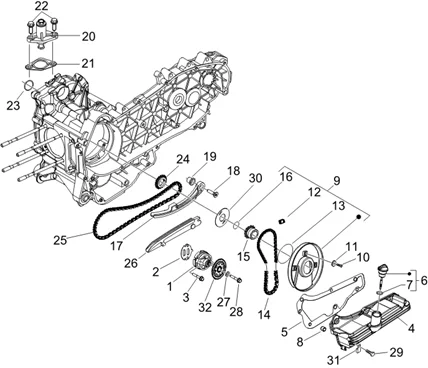

Vehicle Exploded View - GILERA RUNNER 200 VXR 4T E3 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)
Moteur : 01.18 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/199/Runner_200_VXR_4T_E3_2006_01.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/9/img/68849.jpg)
1 |
OIL PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -82948R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/7/img/69547.jpg)
2 |
847929 - JOINT More informationQuantity required : 1 |
|||||||||
3 |
829593 - BOULON More informationQuantity required : 2 |
|||||||||
|
4 |
MOTOR OIL CUP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125 CC -843761- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/6/img/68896.jpg)
5 |
OIL HOUSING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 -830128- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/7/9/img/69279.jpg)
6 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -843364- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
7 |
1A009397 - JOINT "OR" More informationQuantity required : 1 |
|||||||||
|
7 |
1A009397 - JOINT "OR" More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
8 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/6/img/69466.jpg)
9 |
TIMING SYSTEM COVER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC -847116- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
10 |
SCREW - 5X12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585- More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/6/img/66766.JPG)
11 |
487937 - RONDELLE More informationQuantity required : 3 |
|||||||||
|
12 |
434345 - TAMPON. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/5/img/68555.jpg)
13 |
825620 - BAGUE D'!TANCH!ITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/5/img/68605.jpg)
14 |
OIL PUMP CHAIN "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125-250-300 CC -82649R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/3/img/68703.jpg)
15 |
OIL PUMP DRIVING GEAR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -82783R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/0/img/68540.jpg)
16 |
SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON VARIATOR SIDE) PIAGGIO 125-250 X-EVO, X8, X9, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -82538R - More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/2/img/69152.jpg)
17 |
TIMING CHAIN SLIDING BLOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -840510- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
18 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 1 |
|||||||||
|
18 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/3/img/66693.jpg)
19 |
SPACER- -485868- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.JPG)
20 |
82650R - TENDEUR More informationQuantity required : 1 |
|||||||||
|
20 |
82650R - TENDEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
21 |
TIMING SYTEM TENSIONER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -847928- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
22 |
B016777 - VIS More informationQuantity required : 2 |
|||||||||
|
22 |
434541 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/3/img/68573.jpg)
23 |
O'RING GASKET FOR OIL PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -825952- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/0/img/68700.JPG)
24 |
82782R - PIGNON DISTR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/9/img/68599.jpg)
25 |
TIMING CHAIN "PIAGGIO GENUINE PART" 125 MP3, X7, X8, X9, X-EVO, GTS, BEVERLY/GILERA 125 NEXUS, RUNNER -82644R5- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/4/img/68744.jpg)
26 |
TIMING CHAIN SLIDING BLOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -828308- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
27 |
436695 - CONE ELASTIQUE 6X20 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
28 |
B016426 - VIS TEF M6X14 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
29 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792- More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/1/img/66651.jpg)
30 |
CRANKSHAFT OIL SEAL WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -483918- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/8/img/67068.jpg)
31 |
564629 - COLLIER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/2/img/66182.jpg)
32 |
287913 - COURONNE More informationQuantity required : 1 |
|||||||||
