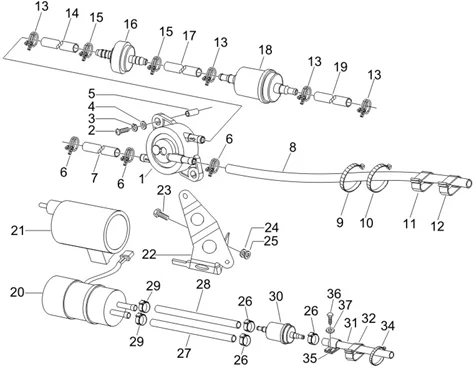

1 |
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903- More informationQuantity required : 1 |
||||||
2 |
652978 - SUPPORT POMPE A ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/8/img/65398.jpg)
2 |
015835 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/4/img/65344.jpg)
3 |
012532 - RONDELLE S01253200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
3 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
4 |
097733 - RONDELLE More informationQuantity required : 2 |
||||||
|
5 |
653348 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
6 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
6 |
CM001901 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
7 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
8 |
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/8/9/img/77289.jpg)
8 |
FUEL FILTER "PIAGGIO GENUINE PART" 125 MP3 2007>, X7 2008>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007> 50 FLY 4 STROKE 2005>/GILERA 125 NEXUS 2007>, RUNNER 2004> 50 RUNNER PURE-JET 2005> -270423- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
9 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 2 |
||||||
|
9 |
097733 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
10 |
257134 - COLLIER More informationQuantity required : 3 |
||||||
|
10 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 2 |
||||||
|
11 |
CM006904 - OLLIER More informationQuantity required : 1 |
||||||
|
11 |
257134 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/7/img/69377.JPG)
12 |
845978 - COLLIER More informationQuantity required : 2 |
||||||
|
12 |
CM017803 - RESSORT POUR TUBES More informationQuantity required : 1 |
||||||
|
13 |
CM001901 - COLLIER More informationQuantity required : 4 |
||||||
|
13 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 4 |
||||||
|
14 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.JPG)
15 |
CM006905 - RESSOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
15 |
CM002907 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/0/img/71230.jpg)
16 |
ANTI RETURN VALVE (FEEDING SYSTEM) "PIAGGIO GENUINE PART" 125 MP3, X8, X9-EVO, X-EVO/GILERA 125 NEXUS, RUNNER 4 STROKE/APRILIA 125 SPORT-CITY-ONE -AP8104594- More informationQuantity required : 1 |
||||||
|
17 |
015835 - VIS More informationQuantity required : 2 |
||||||
|
18 |
FUEL FILTER "PIAGGIO GENUINE PART" 125 MP3 2007>, X7 2008>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007> 50 FLY 4 STROKE 2005>/GILERA 125 NEXUS 2007>, RUNNER 2004> 50 RUNNER PURE-JET 2005> -270423- More informationQuantity required : 1 |
||||||
|
18 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/1/img/72901.jpg)
19 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -CM006116- More informationQuantity required : 1 |
||||||
|
19 |
097733 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/6/0/img/67860.jpg)
20 |
FUEL PUMP "PIAGGIO GENUINE PART" 125 MP3, X8, X9, X-EVO, GTS, LX, NEXUS -639861- More informationQuantity required : 1 |
||||||
|
20 |
653348 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
21 |
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/3/6/img/68236.jpg)
21 |
ELECTRIC PUMP SUPPORT "PIAGGIO GENUINE PART" COMMON TO MAXISCOOTER RANGE 125CC -654047- More informationQuantity required : 1 |
||||||
|
22 |
652978 - SUPPORT POMPE A ESSENCE More informationQuantity required : 1 |
||||||
|
22 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 4 |
||||||
|
23 |
CM002907 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
23 |
031056 - VIS More informationQuantity required : 2 |
||||||
|
24 |
012532 - RONDELLE S01253200 More informationQuantity required : 2 |
||||||
|
24 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/7/4/img/139374.JPG)
25 |
0900455 - RONDELLE More informationQuantity required : 2 |
||||||
|
26 |
CM001901 - COLLIER More informationQuantity required : 4 |
||||||
|
26 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -CM006116- More informationQuantity required : 1 |
||||||
|
27 |
ANTI RETURN VALVE (FEEDING SYSTEM) "PIAGGIO GENUINE PART" 125 MP3, X8, X9-EVO, X-EVO/GILERA 125 NEXUS, RUNNER 4 STROKE/APRILIA 125 SPORT-CITY-ONE -AP8104594- More informationQuantity required : 1 |
||||||
|
28 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160- More informationQuantity required : 1 |
||||||
|
29 |
CM001901 - COLLIER More informationQuantity required : 2 |
||||||
|
30 |
FUEL FILTER "PIAGGIO GENUINE PART" 125 MP3 2007>, X7 2008>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007> 50 FLY 4 STROKE 2005>/GILERA 125 NEXUS 2007>, RUNNER 2004> 50 RUNNER PURE-JET 2005> -270423- More informationQuantity required : 1 |
||||||
|
31 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160- More informationQuantity required : 1 |
||||||
|
32 |
CM006905 - RESSOT More informationQuantity required : 1 |
||||||
|
34 |
257134 - COLLIER More informationQuantity required : 3 |
||||||
|
35 |
845978 - COLLIER More informationQuantity required : 2 |
||||||
|
36 |
031056 - VIS More informationQuantity required : 1 |
||||||
|
37 |
097733 - RONDELLE More informationQuantity required : 1 |
