Vehicle Exploded View - GILERA RUNNER 200 ST 4T E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

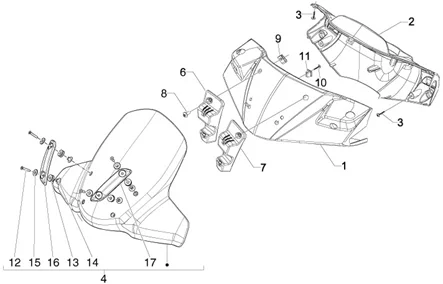

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/197/Runner_200_ST_4T_E3_2008-2011_03.01.PNG)
1 |
655083 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65508300R7 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65508300NI - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65508300EV - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
65508300BR - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
1 |
6550830090 - COUVRE GUIDON AV More informationQuantity required : 1 |
||||||
|
2 |
959347000C - CACHE DIRECTION ARR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
3 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 5 |
||||||
|
4 |
655085 - KIT PARE-BRIS More informationQuantity required : 1 |
||||||
|
6 |
WINDSHIELD BRACKET - RIGHT "PIAGGIO GENUINE PART" GILERA 125 RUNNER 2008> -655074- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/0/3/img/88603.jpg)
7 |
WINDSHIELD BRACKET - LEFT "PIAGGIO GENUINE PART" GILERA 125 RUNNER 2008> -655075- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/1/6/img/81516.jpg)
8 |
581175 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
9 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/5/img/65955.jpg)
10 |
227983 - VIS More informationQuantity required : 2 |
||||||
|
10 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 2 |
||||||
|
11 |
655094 - ATTACHE More informationQuantity required : 2 |
||||||
|
12 |
655652 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/1/7/0/img/84170.jpg)
13 |
622009 - PASSE CABLE More informationQuantity required : 4 |
||||||
|
14 |
599619 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
15 |
599620 - RONDELLE More informationQuantity required : 4 |
||||||
|
16 |
655076 - COUVERCLE DRT More informationQuantity required : 1 |
||||||
|
17 |
655077 - COUVERCLE GAU. More informationQuantity required : 1 |
