Vehicle Exploded View - GILERA RUNNER 200 ST 4T E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

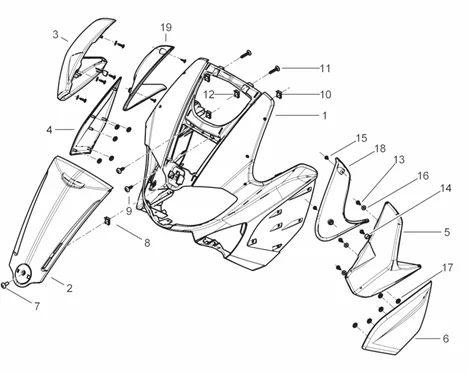

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/197/Runner_200_ST_4T_E3_2008-2011_02.26.PNG)
1 |
655064 - TABLIER AV More informationQuantity required : 1 |
||||||
|
1 |
65506400R7 - TABLIER AV More informationQuantity required : 1 |
||||||
|
1 |
65506400NI - TABLIER AV More informationQuantity required : 1 |
||||||
|
1 |
65506400EV - TABLIER AV More informationQuantity required : 1 |
||||||
|
1 |
65506400BR - TABLIER AV More informationQuantity required : 1 |
||||||
|
1 |
6550640090 - TABLIER AV More informationQuantity required : 1 |
||||||
|
2 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER RED 894 -65510700R7- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/3/5/img/88635.jpg)
2 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER BLACK 80/B -65510760NI- More informationQuantity required : 1 |
||||||
|
2 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER GREY 713/B -65510700EV- More informationQuantity required : 1 |
||||||
|
2 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER WHITE 544 -65510700BR- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/3/1/img/88631.JPG)
2 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER BLACK 94 -6551070090- More informationQuantity required : 1 |
||||||
|
2 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER RAW TO BE PAINT -655107- More informationQuantity required : 1 |
||||||
|
3 |
6549830090 - FLANC DROIT More informationQuantity required : 1 |
||||||
|
3 |
65498300R7 - FLANC DROIT More informationQuantity required : 1 |
||||||
|
3 |
654983 - FLANC AV DROIT More informationQuantity required : 1 |
||||||
|
3 |
65498300NI - FLANC DROIT More informationQuantity required : 1 |
||||||
|
3 |
65498300BR - FLANC DROIT More informationQuantity required : 1 |
||||||
|
3 |
65498300EV - FLANC DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/6/8/img/88568.jpg)
4 |
RIGHT FRONT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> BLACK 80/B -65504300NI- More informationQuantity required : 1 |
||||||
|
4 |
65504300R7 - FLANC DROIT More informationQuantity required : 1 |
||||||
|
4 |
65504300EV - FLANC DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/6/4/img/88564.jpg)
4 |
RIGHT FRONT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> BLACK 94 -6550430090- More informationQuantity required : 1 |
||||||
|
4 |
655043 - FLANC AV DROIT More informationQuantity required : 1 |
||||||
|
5 |
65498200R7 - FLANC GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
65498200NI - FLANC GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
65498200EV - FLANC GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
65498200BR - FLANC GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
6549820090 - FLANC GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
654982 - FLANC AV GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/7/5/img/88575.jpg)
6 |
LEFT FRONT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> BLACK 80/B -65504400NI- More informationQuantity required : 1 |
||||||
|
6 |
65504400R7 - FLANC GAUCHE More informationQuantity required : 1 |
||||||
|
6 |
65504400EV - FLANC GAUCHE More informationQuantity required : 1 |
||||||
|
6 |
LEFT FRONT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> BLACK 94 -6550440090- More informationQuantity required : 1 |
||||||
|
6 |
655044 - FLANC AV GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
7 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
8 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 2 |
||||||
|
10 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 2 |
||||||
|
11 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
13 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 8 |
||||||
|
14 |
655094 - ATTACHE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
15 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
16 |
003056 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
16 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/8/3/img/74283.jpg)
17 |
LOCKING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -085508- More informationQuantity required : 12 |
||||||
|
18 |
655214000C - FACE AVT GAU. More informationQuantity required : 1 |
||||||
|
19 |
655215000C - FACE AVT DRT. More informationQuantity required : 1 |
