Vehicle Exploded View - GILERA RUNNER 180 FXV 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

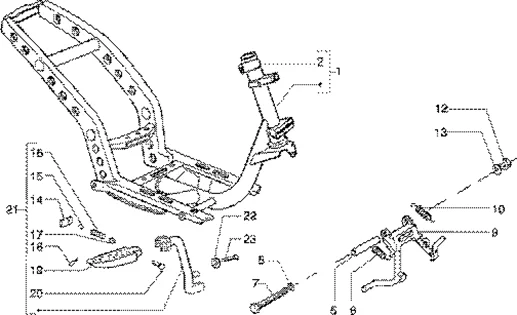

Châssis : T20 CHASSIS-BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/660/Runner_180_FXV_2T_1998-2005_T20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/6/img/66306.jpg)
2 |
LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/7/0/img/77370.jpg)
5 |
272177 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/1/9/img/77319.jpg)
6 |
271175 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/2/img/66112.jpg)
7 |
272178 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/8/5/img/81485.jpg)
9 |
CENTER STAND "PIAGGIO GENUINE PART" 125 TYPHOON 2STROKE 1998>2005/GILERA 125 RUNNER 2STROKE 1998>2005 -580985- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/0/2/img/77202.jpg)
10 |
268419 - RESSORT INT BEQUILLE More informationQuantity required : 1 |
|||||||||
12 |
272176 - ECROU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
13 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
|||||||||
|
14 |
295592 - PLAQUETTE More informationQuantity required : 2 |
|||||||||
|
15 |
2955916 - BILLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/3/img/66283.jpg)
15 |
295591 - BILLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
16 |
2955909 - RESSORT More informationQuantity required : 2 |
|||||||||
|
16 |
2955909 - RESSORT More informationQuantity required : 2 |
|||||||||
|
17 |
006177 - RONDELLE S00617700 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/2/img/63782.jpg)
18 |
003208 - GOUPILLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
18 |
259933 - RESSORT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/0/img/66280.jpg)
19 |
LEFT OR RIGHT PASSENGER FOOTREST MAT "PIAGGIO GENUINE PARTS" 50 NRG, TYPHOON/GILERA 50 RUNNER -295451- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/5/img/66285.jpg)
20 |
295593 - PIVOT More informationQuantity required : 2 |
|||||||||
|
21 |
573502 - REPOSE PIED DROIT More informationQuantity required : 1 |
|||||||||
|
21 |
573501 - REPOSE PIED GAUCHE More informationQuantity required : 1 |
|||||||||
|
22 |
003058 - RONDELLE S00305800 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
23 |
031119 - BOULON More informationQuantity required : 2 |
|||||||||
