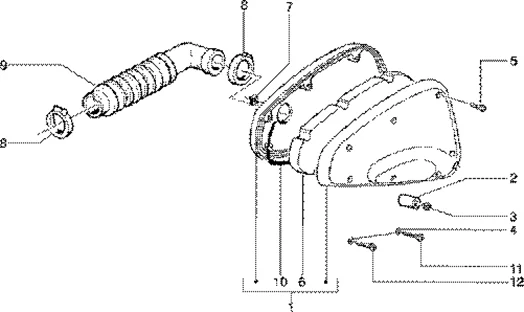

Vehicle Exploded View - GILERA RUNNER 180 FXV 2T 1998-2005 GILERA

Châssis : T18 FILTRE A AIR
Filtre a air
Search
AIR FILTER HOUSING "PIAGGIO GENUINE PART" GILERA 125 RUNNER 2 stroke 1998>2005 -478519-

1
P2R reference P2R reference 78896
Maker reference Maker reference 478519

AIR FILTER HOUSING "PIAGGIO GENUINE PART" GILERA 125 RUNNER 2 STROKE 1998>2005 -478519-

More information

Quantity required : 1
480243 - ENTRETOISE DE FILTRE

2
P2R reference P2R reference 78933
Maker reference Maker reference 480243

480243 - ENTRETOISE DE FILTRE

More information

Quantity required : 2
830056 - BAGUE

3
P2R reference P2R reference 68888
Maker reference Maker reference 830056

830056 - BAGUE

More information

Quantity required : 4
012533 - RONDELLE

4
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

012533 - RONDELLE

More information

Quantity required : 2
SCREW - 3x20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

5
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

More information

Quantity required : 7
AIR FILTER FOAM - PREMIUM "PIAGGIO GENUINE PART" PIAGGIO 125 SKIPPER 2T/GILERA 125 RUNNER 2T -4800840P-

6
P2R reference P2R reference 159841
Maker reference Maker reference 4800840P

AIR FILTER FOAM - PREMIUM "PIAGGIO GENUINE PART" PIAGGIO 125 SKIPPER 2T/GILERA 125 RUNNER 2T -4800840P-

More information

Quantity required : 1
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

7
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1
1A000833 - COLLIER

8
P2R reference P2R reference 75332
Maker reference Maker reference 1A000833

1A000833 - COLLIER

More information

Quantity required : 2
257134 - COLLIER

8
P2R reference P2R reference 66017
Maker reference Maker reference 257134

257134 - COLLIER

More information

Quantity required : 2
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 125 TYPHOON 2 stroke, SKIPPER 2 stroke 1998>2005/GILERA 125 RUNNER 2 stroke -431863-

9
P2R reference P2R reference 78571
Maker reference Maker reference 431863

AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 125 TYPHOON 2 STROKE, SKIPPER 2 STROKE 1998>2005/GILERA 125 RUNNER 2 STROKE -431863-

More information

Quantity required : 1
479959 - JOINT DE FILTRE FX

10
P2R reference P2R reference 78926
Maker reference Maker reference 479959

479959 - JOINT DE FILTRE FX

More information

Quantity required : 1
SCREW - FOR HEADLIGHT FASTENING (6x100) "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, MANA -478171-

11
P2R reference P2R reference 66547
Maker reference Maker reference 478171

SCREW - FOR HEADLIGHT FASTENING (6X100) "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, MANA -478171-

More information

Quantity required : 1
481032 - VIS DE FILTRE FX

12
P2R reference P2R reference 66605
Maker reference Maker reference 481032

481032 - VIS DE FILTRE FX

More information

Quantity required : 1
