Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 1998-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

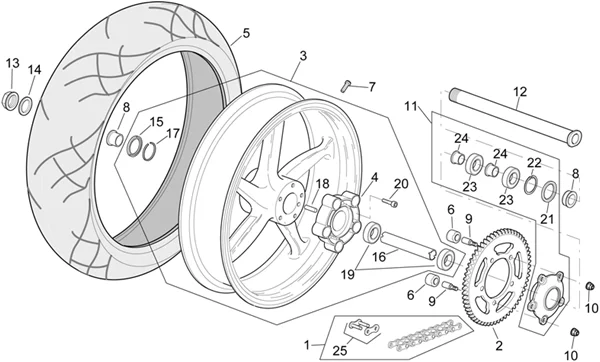

Chassis : 28.34 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/313/RSV_1000_1998-1999_28.34.PNG)
1 |
AP8107118 - CHA?NE+MAIL.JONCTION More informationQuantity required : 1 |
||||||
|
2 |
AP8107122 - COURONNE More informationQuantity required : 1 |
||||||
|
3 |
AP8108676 - ROUE ARRIERE NUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/6/0/8/img/108608.jpg)
4 |
SILENTBLOC FOR REAR WHEEL "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1000 RSV-2, RSV-4, TUONO, 1200 CAPONORD -2B000639R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/5/img/72805.jpg)
6 |
SILENTBLOC FOR REAR CHAIN SPROCKET "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV -B043317- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
7 |
TUBELESS TYRE VALVE "PIAGGIO GENUINE PART" COMMON FOR APRILIA /MOTO-GUZZI MOTORBIKES -AP8101744- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/5/3/img/46753.jpg)
8 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 900 DORSODURO, 1000 RSV-2, FALCO, TUONO, 1200 CAPONORD -AP8121225- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
10 |
NUT - FRAME FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA +MOTO-GUZZI -AP8150436- More informationQuantity required : 5 |
||||||
|
11 |
AP81257305 - PORTE-COURONNE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/6/1/img/62561.jpg)
12 |
REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO 2008>2018, 750-900 SHIVER 2007>2018 -B045422- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/8/img/71968.jpg)
13 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152324- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
14 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152323- More informationQuantity required : 1 |
||||||
|
15 |
AP8125786 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
16 |
AP8125787 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
17 |
AP8125788 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/4/img/50884.JPG)
18 |
AP8150463 - GOUPILLE More informationQuantity required : 1 |
||||||
|
19 |
AP8106806 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
20 |
AP8150195 - VIS More informationQuantity required : 5 |
||||||
|
21 |
AP8121213 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/9/img/46749.JPG)
22 |
AP8121212 - BAGUE SEEGER POUR ORIFICE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/1/img/45831.JPG)
23 |
AP8110081 - ROULEMENT More informationQuantity required : 2 |
||||||
|
24 |
AP8125732 - ENTRETOISE JOINT ELAST. More informationQuantity required : 2 |
||||||
|
25 |
AP8107136 - MAILLON DE JONCTION More informationQuantity required : 1 |
