Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 1998-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

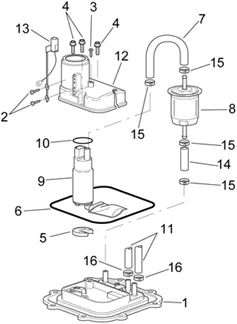

Chassis : 28.28 POMPE ESSENCE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/313/RSV_1000_1998-1999_28.28.PNG)
1 |
AP8134750 - BRIDE POMPE ESSENCE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
2 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
4 |
AP8152273 - VIS BRIDE More informationQuantity required : 3 |
||||||
|
6 |
AP8144010 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
8 |
AP8102627 - FILTRE ESSENCE More informationQuantity required : 1 |
||||||
|
9 |
AP8106385 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
|
10 |
AP8144011 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
11 |
896571 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
15 |
AP8102765 - COLLIER CLIC, BLANC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
16 |
AP8102239 - COLLIER CLIC More informationQuantity required : 2 |
