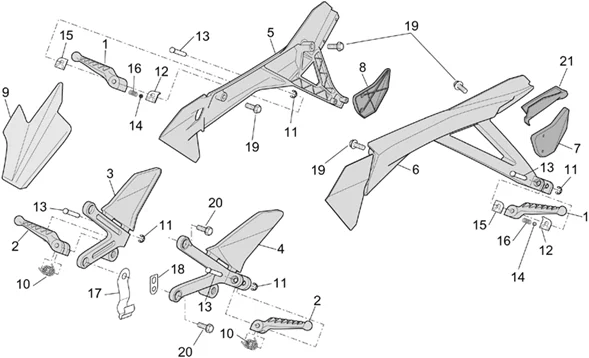

Chassis : 28.03 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.03.PNG)
1 |
AP8146466 - R-PIED PASS.-PAIRE More informationQuantity required : 1 |
||||||
|
3 |
AP8146248 - SUP.PL.PILOTE DTE; More informationQuantity required : 1 |
||||||
|
4 |
AP8146249 - SUP.PL.PILOTE GCHE; More informationQuantity required : 1 |
||||||
|
5 |
AP8146296 - SUPPORT R-P. D PASS.; More informationQuantity required : 1 |
||||||
|
6 |
AP8146297 - SUPPORT R-P. G PASS.; More informationQuantity required : 1 |
||||||
|
9 |
AP8119617 - PROTECTION TUYAUX ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/4/img/71454.JPG)
10 |
AP8121224 - RESSORT RETOUR REPOSE-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
11 |
AP8152409 - ANNEAU D'ARR?T RAD. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
12 |
AP8134451 - PLAQUE FDC R-PIED; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/2/img/71472.jpg)
13 |
AP8121566 - PIVOT REPOSE-PIEDS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
14 |
BALL Ø6,35 - FOR FOOTREST "PIAGGIO GENUINE PART" APRILIA DORSODURO 750-900-1200, RS 50-125, RSV4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861- More informationQuantity required : 2 |
||||||
|
15 |
AP8134451 - PLAQUE FDC R-PIED; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
16 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
19 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
20 |
AP8152287 - VIS BRIDE More informationQuantity required : 4 |
