Vehicle Exploded View - APRILIA RST 1000 Futura 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

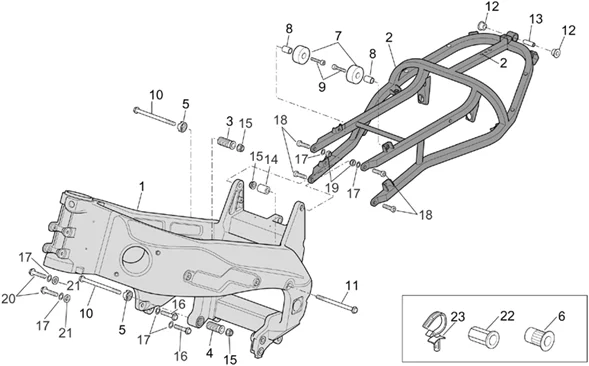

Chassis : 28.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/312/RST_1000_Futura_2001-2003_28.01.PNG)
1 |
AP8146273 - CHASSIS FINI; More informationQuantity required : 1 |
||||||
|
2 |
AP8146247 - ACCROCHE-SELLE; More informationQuantity required : 1 |
||||||
|
3 |
AP8121996 - DOUILLE DE REGLAGE SUP.; More informationQuantity required : 1 |
||||||
|
4 |
AP8121997 - DOUILLE DE REGLAGE INF.; More informationQuantity required : 1 |
||||||
|
5 |
AP8121995 - BAGUE FIX. MOTEUR; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.JPG)
6 |
AP8102544 - RIVET FILETE+MOLETE More informationQuantity required : 19 |
||||||
|
7 |
AP8201124 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/5/img/71465.jpg)
8 |
AP8121455 - DOUILLE ENTRETOISE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
9 |
AP8150236 - VIS More informationQuantity required : 2 |
||||||
|
10 |
AP8152317 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
12 |
AP8144423 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/3/4/img/46934.jpg)
13 |
AP8121764 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
14 |
AP8121998 - ENTRETOISE SUP.MOT.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
15 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/5/img/71965.jpg)
16 |
AP8152318 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.JPG)
17 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/7/img/50887.JPG)
18 |
AP8150469 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
19 |
NUT - FRAME FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA +MOTO-GUZZI -AP8150436- More informationQuantity required : 2 |
||||||
|
20 |
AP8152325 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/5/9/img/46759.JPG)
21 |
AP8121254 - ENTRETOISE AV.G.MOTEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/5/img/71205.JPG)
22 |
HEX THREADED INSERT "PIAGGIO GENUINE PART"COMMON TO MOTORBIKE RANGE -AP8102902- More informationQuantity required : 2 |
||||||
|
23 |
AP8221310 - PASSE-CABLE More informationQuantity required : 1 |
