Vehicle Exploded View - APRILIA RS 125 RS4 125 4T 2014-2016 APRILIA

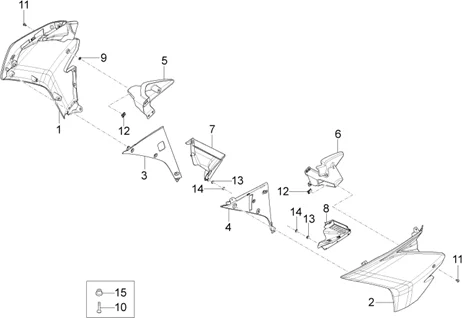

Carrosserie : 02.080 CARÈNE LATERAL
Carène lateral
Search
CARENAGE LATERAL DROIT ORIGINE PIAGGIO 50-125 RS APRILIA 2014>2016 GRIS -B0434680000XE4-

1
P2R reference P2R reference 62086
Maker reference Maker reference B0434680000XE4

CARENAGE LATERAL DROIT ORIGINE PIAGGIO 50-125 RS APRILIA 2014>2016 GRIS -B0434680000XE4-

More information

Quantity required : 1
2H001304000XN1 - CARENE LATERALE DROITE

1
P2R reference P2R reference 139145
Maker reference Maker reference 2H001304000XN1

2H001304000XN1 - CARENE LATERALE DROITE

More information

Quantity required : 1
2H001305000XN1 - CARENE LATERALE G

2
P2R reference P2R reference 139146
Maker reference Maker reference 2H001305000XN1

2H001305000XN1 - CARENE LATERALE G

More information

Quantity required : 1
LEFT SIDE PANEL "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2014> GREY REPLICA -B0434670000XE4-

2
P2R reference P2R reference 62081
Maker reference Maker reference B0434670000XE4

LEFT SIDE PANEL "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2014> GREY REPLICA -B0434670000XE4-

More information

Quantity required : 1
858828 - CARENE DTE INT.

3
P2R reference P2R reference 40579
Maker reference Maker reference 858828

858828 - CARENE DTE INT.

More information

Quantity required : 1
858829 - CARENE INF.G.

4
P2R reference P2R reference 40580
Maker reference Maker reference 858829

858829 - CARENE INF.G.

More information

Quantity required : 1
RIGHT ENGINE CLOSING "PIAGGIO GENUINE PART" 50-125 RS 2010> -899214-

5
P2R reference P2R reference 43119
Maker reference Maker reference 899214

RIGHT ENGINE CLOSING "PIAGGIO GENUINE PART" 50-125 RS 2010> -899214-

More information

Quantity required : 1
LEFT ENGINE CLOSING "PIAGGIO GENUINE PART" 50-125 RS 2010> -899215-

6
P2R reference P2R reference 43120
Maker reference Maker reference 899215

LEFT ENGINE CLOSING "PIAGGIO GENUINE PART" 50-125 RS 2010> -899215-

More information

Quantity required : 1
FRONT RIGHT AIR PULLER "PIAGGIO GENUINE PART" PIAGGIO APRILIA 50-125 RS 2011>, 1000 RSV-4 -893979-

7
P2R reference P2R reference 42106
Maker reference Maker reference 893979

FRONT RIGHT AIR PULLER "PIAGGIO GENUINE PART" PIAGGIO APRILIA 50-125 RS 2011>, 1000 RSV-4 -893979-

More information

Quantity required : 1
FRONT LEFT AIR PULLER "PIAGGIO GENUINE PART" PIAGGIO APRILIA 50-125 RS 2011>, 1000 RSV-4 -893980-

8
P2R reference P2R reference 42107
Maker reference Maker reference 893980

FRONT LEFT AIR PULLER "PIAGGIO GENUINE PART" PIAGGIO APRILIA 50-125 RS 2011>, 1000 RSV-4 -893980-

More information

Quantity required : 1
FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622-

9
P2R reference P2R reference 71410
Maker reference Maker reference AP8120622

FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622-

More information

Quantity required : 4
AP8144563 - RIVETTO IN PLASTICA MASCHIO

10
P2R reference P2R reference 71769
Maker reference Maker reference AP8144563

AP8144563 - RIVETTO IN PLASTICA MASCHIO

More information

Quantity required : 6
SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

11
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

More information

Quantity required : 6
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

12
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 4
RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504-

13
P2R reference P2R reference 71181
Maker reference Maker reference AP8102504

RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504-

More information

Quantity required : 5
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

14
P2R reference P2R reference 71888
Maker reference Maker reference AP8150450

WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

More information

Quantity required : 5
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616-

15
P2R reference P2R reference 71773
Maker reference Maker reference AP8144616

CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616-

More information

Quantity required : 6
