Vehicle Exploded View - APRILIA RS 125 RS4 125 4T 2014-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

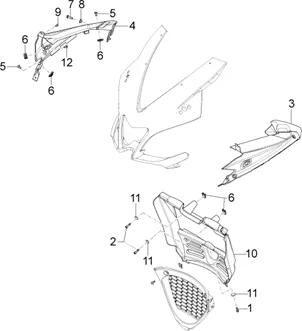

Carrosserie : 02.070 CONVOYEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/752/RS4_125_4T_2014-2016_02.070.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/9/img/71819.jpg)
1 |
AP8150050 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/6/img/71846.jpg)
2 |
AP8150252 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/8/1/1/img/42811.jpg)
3 |
LEFT FAIRING UPPER CLOSING "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -897694- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/8/1/0/img/42810.jpg)
4 |
RIGHT FAIRING UPPER CLOSING "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -897693- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA + MOTO-GUZZI V7-V9 -896174- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/9/img/72319.jpg)
8 |
AP8221349 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
9 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
10 |
898074 - ENCADREMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
11 |
AP8150248 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/8/8/img/42388.jpg)
12 |
895915 - VIS More informationQuantity required : 4 |
