Vehicle Exploded View - APRILIA RS 50 2006-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

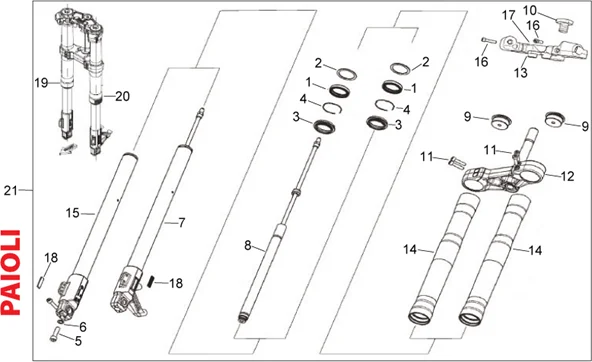

Chassis : 28.03 FOURCHE PAIOLI
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/769/RS_50_2006-2010_28.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/4/7/img/70847.jpg)
1 |
FORK OIL SEAL GASKET-PAIOLI (41X53X10,5MM) "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010, 50-125 RS4 2011>2013 -896516 More informationQuantity required : 2 |
||||||
2 |
896517 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/4/9/img/70849.jpg)
3 |
FORK DUST COVER PAIOLI "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -896518 More informationQuantity required : 2 |
||||||
|
4 |
896519 - BAGUE More informationQuantity required : 2 |
||||||
|
5 |
896520 - VIS More informationQuantity required : 2 |
||||||
|
6 |
896521 - RONDELLE More informationQuantity required : 2 |
||||||
|
7 |
896528 - GROUPE TUBE FOURCHE More informationQuantity required : 1 |
||||||
|
8 |
896529 - COMPLETE FRONT FORK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/1/img/70861.jpg)
9 |
FORK TOP CAP - PAIOLI "PIAGGIO GENUINE PART" APRILIA 50 RS -896530 More informationQuantity required : 2 |
||||||
|
10 |
896522 - ECROU More informationQuantity required : 1 |
||||||
|
11 |
896523 - VIS More informationQuantity required : 5 |
||||||
|
12 |
896531 - PLAQUE AVEC DOUILLE DE DIRECTION More informationQuantity required : 1 |
||||||
|
13 |
896524 - CHASSIS More informationQuantity required : 1 |
||||||
|
14 |
896532 - TIGE COMPLET More informationQuantity required : 2 |
||||||
|
15 |
896533 - GROUPE TUBE FOURCHE More informationQuantity required : 1 |
||||||
|
16 |
896525 - VIS More informationQuantity required : 2 |
||||||
|
17 |
896526 - COMPLETE FRONT FORK More informationQuantity required : 2 |
||||||
|
18 |
896527 - PLAQUE More informationQuantity required : 2 |
||||||
|
19 |
896534 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
20 |
896535 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
21 |
865589 - FOURCHE COMPLETE More informationQuantity required : 1 |
