Vehicle Exploded View - APRILIA RS 50 2006-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

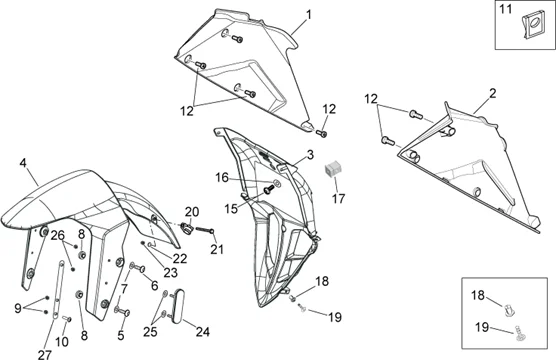

Chassis : 28.07 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/769/RS_50_2006-2010_28.07.PNG)
1 |
00H01802161 - CARENAGE DR. More informationQuantity required : 1 |
||||||
|
2 |
00H01803161 - CARENAGE GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/0/8/img/64608.jpg)
3 |
FRONT WHEEL COMPARTMENT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01801161- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/7/7/img/70877.jpg)
4 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010, RS4 2011>, 125 RS4 2011>2016, RS 2017> NOIR -897700 More informationQuantity required : 1 |
||||||
|
4 |
86142800WN15 - GARDE-BOUE AV. More informationQuantity required : 1 |
||||||
|
4 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 WHITE GLAM -R861559- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/4/img/64544.jpg)
5 |
00H01503701 - VIS M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
6 |
00H01501701 - BOULON BOMBEE ALLEN 6M100X16 More informationQuantity required : 2 |
||||||
|
7 |
00A02100591 - ROND. PLATE MECANISEE More informationQuantity required : 4 |
||||||
|
8 |
00H00700321 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
9 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060 More informationQuantity required : 2 |
||||||
|
10 |
00008062000 - BOULON BOMBEE ALLEN 6M100X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
11 |
AP8202449 - CLIP X VITE AUTOFIL.D.4,2 More informationQuantity required : 8 |
||||||
|
12 |
00011041600 - VIS AUTO. 4,2X16 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/1/img/63681.jpg)
15 |
SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
16 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 2 |
||||||
|
17 |
00H01800171 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
18 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
19 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
20 |
FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/1/img/63661.jpg)
21 |
00008051200 - VIS 5X12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
22 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226 More informationQuantity required : 2 |
||||||
|
23 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
24 |
AP8124719 - CATADIOPTRE, AMBRE More informationQuantity required : 1 |
||||||
|
25 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.jpg)
26 |
00000023040 - ECROU INDESSERABLE4M70 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/1/1/img/70311.jpg)
27 |
FRONT SPLASH GUARD SUPPORT "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO -867258- More informationQuantity required : 1 |
