Vehicle Exploded View - APRILIA RS 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

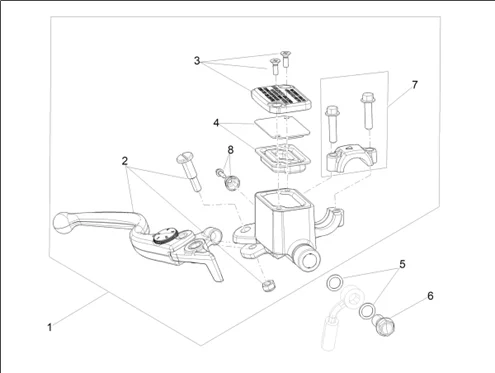

Système de freinage : 06.01 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1228/RS_457_4T_8V_E5_ABS_2024_EMEA_06.01.png)
1 |
2B012778 - A€ŒMAîTRE-CYLINDRE DE FREIN AVANT More informationQuantity required : 1 |
||||||
|
2 |
2B012826 - LEV. FR. AV. More informationQuantity required : 1 |
||||||
|
3 |
2B012824 - CARTER DE MAîTRE-CYLINDRE More informationQuantity required : 1 |
||||||
|
4 |
2B012827 - MEMBRANE COMPLèTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
5 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
|
6 |
2B011672R - SPECIAL SCREW More informationQuantity required : 1 |
||||||
|
7 |
2B013041 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
||||||
|
8 |
2B013042 - COIFFE PPE FREIN AV. More informationQuantity required : 1 |
