Vehicle Exploded View - APRILIA RS 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

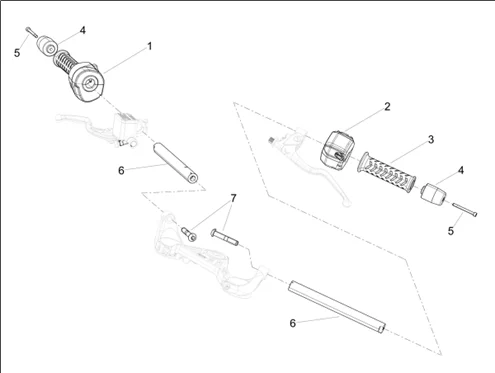

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1228/RS_457_4T_8V_E5_ABS_2024_EMEA_07.02.png)
1 |
2D000780 - RBW THROTTLE CONTROL WITH SWITCH MINDA More informationQuantity required : 1 |
|||||||||
|
2 |
2D000781 - COMMANDE GUIDON G. More informationQuantity required : 1 |
|||||||||
|
3 |
2B011350 - POIGNéE GAUCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/7/1/img/70171.jpg)
4 |
BAR ENDS - "PIAGGIO GENUINE PART" APRILIA 50-125 RS4 2011>, 50-125 TUONO 2017> BLACK -866233 More informationQuantity required : 2 |
|||||||||
|
4 |
2B011366 - MASSE ANTIVIBRATILE GUIDON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/4/8/6/img/177486.jpg)
5 |
2B002580 - SCREW M5X50 8 8 UNI 5931 THREADLOCKER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/7/8/1/img/212781.JPG)
6 |
2B011364 - DEMI-GUIDON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/5/7/1/img/177571.jpg)
7 |
2B007275 - VIS A TETE BOMBEE TORX More informationQuantity required : 2 |
|||||||||
