Vehicle Exploded View - GILERA RCR 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)
Moteur : T12 EXAPPEMENT ET SILENCIEUX

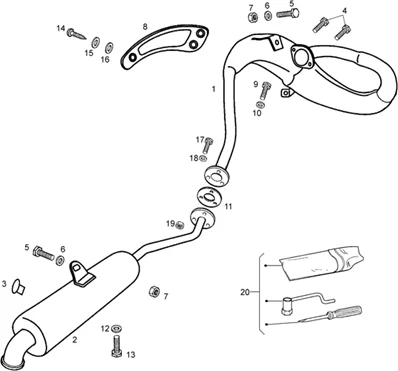

/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/664/RCR_50_1998-2005_T12.PNG)
1 |
00H03439081 - ENSEMBLE TUBE DIECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/5/img/69845.jpg)
2 |
86126R - SILENCIEUX DIECHAPPEMENT More informationQuantity required : 1 |
||||||
|
3 |
00G01500951 - APPUI BEQUILLE LATERALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
4 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 1 |
||||||
|
5 |
00012081621 - VISA TETE HEXAG.8M125X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
6 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
7 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/0/img/63790.jpg)
10 |
00442060002 - RONDELLE A RESSORT D6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/9/2/img/64792.jpg)
11 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H03404321- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/7/img/69507.jpg)
12 |
847239 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/0/img/63580.jpg)
14 |
00000012415 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/2/img/63922.jpg)
15 |
00F04201361 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
16 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181- More informationQuantity required : 1 |
||||||
|
20 |
00H05101561 - TROUSSE A OUTILS More informationQuantity required : 1 |
