Vehicle Exploded View - GILERA RCR 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

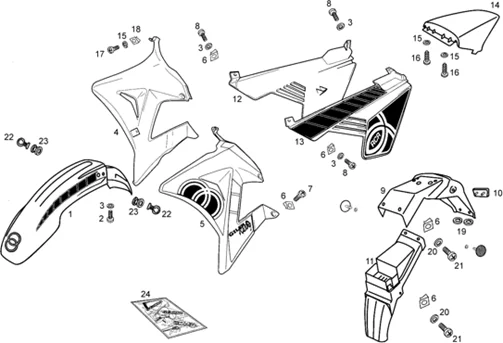

Châssis : T17 MONTAGE CHAISS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/664/RCR_50_1998-2005_T17.PNG)
1 |
00H00712431 - PARAFANGO ANT.ROSSO SDR GI More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50 RCR BLACK -00H00712432- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
2 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
3 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
4 |
00H04429801 - COUVERCLE LAT DT ROUGE More informationQuantity required : 1 |
||||||
|
4 |
00H04429802 - COUVERTURE LAT DT NOIRE More informationQuantity required : 1 |
||||||
|
5 |
00H04429881 - COUVERTURE LAT.SX ROUGE DECO NOIR BLANC More informationQuantity required : 1 |
||||||
|
5 |
00H04429882 - COUVERCLE LAT SX GRIS DECO NOIR JAUNE More informationQuantity required : 1 |
||||||
|
5 |
00H04429885 - COUVERTURE LAT.G NOIRE DECO ORANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701- More informationQuantity required : 1 |
||||||
|
8 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/9/img/64299.jpg)
9 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00712341- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/8/img/64118.jpg)
10 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/3/img/64293.jpg)
11 |
REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H00712341- More informationQuantity required : 1 |
||||||
|
12 |
00H00544691 - COUVERTURE LAT.DR. ROUGE SDR GI More informationQuantity required : 1 |
||||||
|
12 |
00H00544692 - COPERTURA LAT.DX.NERO SDR GI More informationQuantity required : 1 |
||||||
|
13 |
00H00544705 - COPERTURA LAT SX.NARJ.SR GIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/7/1/img/64271.jpg)
13 |
FRONT SIDE COVER - LEFT - "PIAGGIO GENUINE PART" GILERA 50 RCR 2006>2010 -00H00544702- More informationQuantity required : 1 |
||||||
|
14 |
00H04923092C - CARENAGE SELLE NOIR DR More informationQuantity required : 1 |
||||||
|
14 |
00H04923091 - CARENAGE DE SELLE ROUGE DR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
15 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/1/img/63681.jpg)
16 |
SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
17 |
SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
18 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
19 |
WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
20 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 1 |
||||||
|
21 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/8/img/64668.jpg)
22 |
FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
23 |
RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021- More informationQuantity required : 1 |
||||||
|
24 |
00H05149652 - KIT DECALQUE SR NOIR More informationQuantity required : 1 |
||||||
|
24 |
00H05149651 - KIT PLAQUETTES SR GIL ROUGE DRAGON More informationQuantity required : 1 |
||||||
|
24 |
00H05149653 - KIT DECAL. SR GIL ORANGE More informationQuantity required : 1 |
