Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3000)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

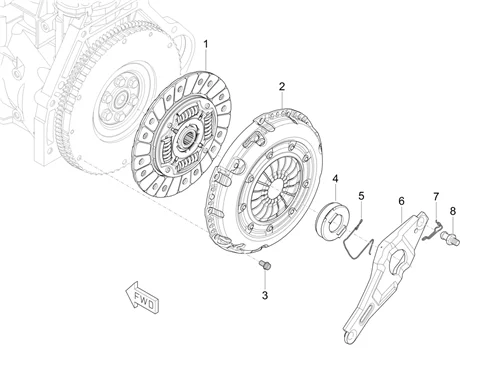

Moteur : 01.20 GROUPE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/998/Porter_NP6_(TW_3000)_01.20.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/8/8/img/173188.jpg)
1 |
1A012938 - DISQUE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/8/9/img/173189.jpg)
2 |
1A012936 - COUVERCLE EMBRAYAGE More informationQuantity required : 1 |
||||||
3 |
1A019278 - HEXAG HEAD SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/8/3/2/img/134832.jpg)
4 |
CLUTCH RELEASE BEARING "PIAGGIO GENUINE PART" PORTER MULTITECH E6 2015> -1A005162 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/0/5/1/img/113051.jpg)
5 |
CLUTCH END SPRING "PIAGGIO GENUINE PART" PORTER -B010292 More informationQuantity required : 1 |
||||||
|
6 |
1A013780 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/0/8/4/img/113084.jpg)
7 |
SPRING FOR CLUTCH SHIFT FORK "PIAGGIO GENUINE PART" PORTER -B010288 More informationQuantity required : 1 |
||||||
|
8 |
1A013779 - VIS SPECIALE More informationQuantity required : 1 |
