Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3000)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

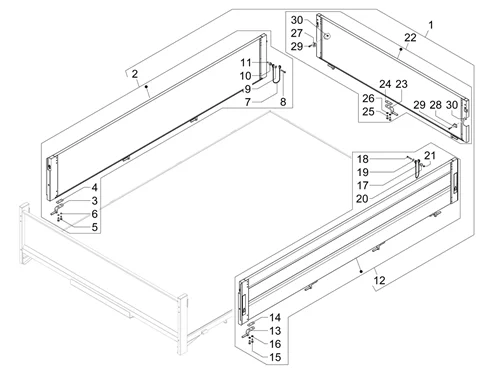

Châssis - carrosseries : 04.10 RIDELLES BENNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/998/Porter_NP6_(TW_3000)_04.10.png)
2 |
CM317403 - SIDE PANEL GATE RH ASSY More informationQuantity required : 1 |
||||||
|
4 |
B000250 - PLATE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
5 |
031119 - BOULON More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
6 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
10 |
013092 - RONDELLE S01309200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
11 |
012138 - ECROU S01213800 More informationQuantity required : 1 |
||||||
|
12 |
CM317404 - SIDE PANEL GATE LH ASSY More informationQuantity required : 1 |
||||||
|
14 |
B000250 - PLATE More informationQuantity required : 4 |
||||||
|
15 |
031119 - BOULON More informationQuantity required : 8 |
||||||
|
16 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 8 |
||||||
|
20 |
013092 - RONDELLE S01309200 More informationQuantity required : 1 |
||||||
|
21 |
012138 - ECROU S01213800 More informationQuantity required : 1 |
||||||
|
22 |
CM317412 - REAR PANEL GATE ASSY More informationQuantity required : 1 |
||||||
|
24 |
B000250 - PLATE More informationQuantity required : 3 |
||||||
|
25 |
031119 - BOULON More informationQuantity required : 6 |
||||||
|
26 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 6 |
||||||
|
27 |
264948 - ETRIER More informationQuantity required : 1 |
||||||
|
28 |
264949 - ETRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
29 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 2 |
||||||
|
30 |
012138 - ECROU S01213800 More informationQuantity required : 2 |
