Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650) ICE - 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

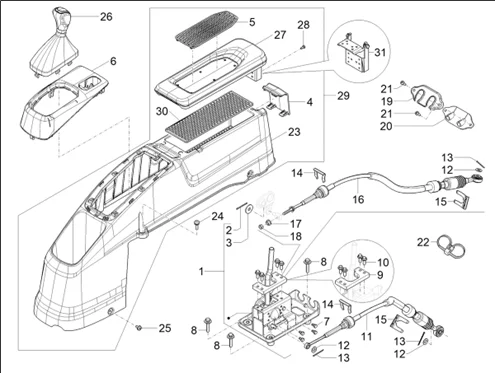

08_composants internes de la cabine : 08.02 02_TUNNEL CENTRAL - LEVIER DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1255/Porter_NP6_(SW_2650)_ICE_-_2025_08.02.png)
1 |
WET17300000004 - COMMANDE BOITE DE VITESSES COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/6/2/0/img/173620.jpg)
2 |
WQ5000232F61 - GOUPILLE More informationQuantity required : 1 |
||||||
|
3 |
WQ401B08F61 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
4 |
STORAGE BOX COVER HINGE |
||||||
|
5 |
WET53500000007 - ARMREST MAT More informationQuantity required : 1 |
||||||
|
6 |
WET17300000001 - GEARBOX COVER PLATE COMPLETE More informationQuantity required : 1 |
||||||
|
7 |
WQ146B1040F61 - BOLT SPRING WASHER AND PLAIN WASHER ASS More informationQuantity required : 4 |
||||||
|
8 |
WL0173080200A0 - BOLT SPRING WASHER AND PLAIN WASHER ASS More informationQuantity required : 4 |
||||||
|
9 |
WL0173380200A0 - PLATE, SHIFT LEVER STOPPER More informationQuantity required : 1 |
||||||
|
10 |
WQ1840616F61 - VIS A TETE HEXAGONALE BRIDEE More informationQuantity required : 4 |
||||||
|
11 |
WL017200000176 - TRANSMISSION More informationQuantity required : 1 |
||||||
|
12 |
WQ401B08F61 - RONDELLE PLATE More informationQuantity required : 3 |
||||||
|
13 |
WQ5000232F61 - GOUPILLE More informationQuantity required : 3 |
||||||
|
14 |
WC3172080002A0 - GEAR SHIFT CABLE LIMIT PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/6/2/2/img/173622.JPG)
15 |
W1102917200004 - CLIP ELASTIQUE More informationQuantity required : 2 |
||||||
|
16 |
WL017200000175 - TRANSMISSION More informationQuantity required : 1 |
||||||
|
17 |
WQ32406F61 - VIS A TETE HEXAGONALE BRIDEE More informationQuantity required : 1 |
||||||
|
18 |
WQ340B06F61 - ÉCROU HEXAGONAL More informationQuantity required : 1 |
||||||
|
19 |
WL0172120400A0 - BRACKET TRANSM CONTROL CABLES More informationQuantity required : 1 |
||||||
|
20 |
WC3172120001A0 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
21 |
WQ2714816F61 - SELF TAPPING SCREW W CROSS SLOT More informationQuantity required : 2 |
||||||
|
22 |
WL0110140015A0 - TIE DOUBLE More informationQuantity required : 1 |
||||||
|
23 |
WET535123100A0 - MIDDLE CONSOLE BODY More informationQuantity required : 1 |
||||||
|
24 |
WQ236B0620F62 - CROSS SLOT CAP SCREW W PLANE AND ELAST More informationQuantity required : 2 |
||||||
|
25 |
WQ220B5513F62 - CROSS SLOTTED CAP SCREW WITH WASHER More informationQuantity required : 4 |
||||||
|
26 |
WET17300000006 - KNOB ASSY, GEAR SHIFT More informationQuantity required : 1 |
||||||
|
27 |
ARMREST COMPLETE |
||||||
|
28 |
WQ2714813F38 - VIS AUTOTARAUDEUSE More informationQuantity required : 6 |
||||||
|
29 |
MIDDLE CONSOLE WITH ARMREST |
||||||
|
30 |
WET535122000A0 - STORAGE BOX RUBBER PAD More informationQuantity required : 1 |
||||||
|
31 |
ARMREST HINGE |
