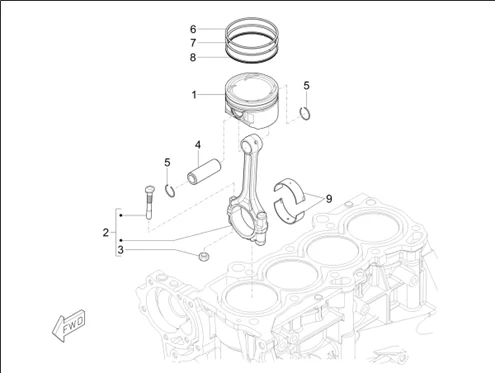

Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650) ICE - 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)
01_moteur : 01.05 05_GROUPE PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1255/Porter_NP6_(SW_2650)_ICE_-_2025_01.05.png)
1 |
1A012941 - PISTON More informationQuantity required : 4 |
||||||
|
2 |
1A012940 - BIELLE More informationQuantity required : 4 |
||||||
|
3 |
1A019265 - SPECIAL NUT More informationQuantity required : 8 |
||||||
|
4 |
1A005491 - AXE More informationQuantity required : 4 |
||||||
|
5 |
1A005492 - BAGUE D'ET. More informationQuantity required : 8 |
||||||
|
6 |
1A005493 - SEGMENT More informationQuantity required : 4 |
||||||
|
7 |
1A019301 - COMPRESSION RING More informationQuantity required : 4 |
||||||
|
8 |
1A019302 - SCRAPER RING More informationQuantity required : 4 |
||||||
|
9 |
1A0129331 - SEMI BUSH 1ST INCREASE More informationQuantity required : 2 |
||||||
|
9 |
1A0129332 - SEMI BUSH 2ST INCREASE More informationQuantity required : 2 |
||||||
|
9 |
1A0129333 - SEMI BUSH 3ST INCREASE More informationQuantity required : 2 |
||||||
|
9 |
1A0129334 - SEMI BUSH 4ST INCREASE More informationQuantity required : 2 |
||||||
|
9 |
1A0129335 - SEMI BUSH 5ST INCREASE More informationQuantity required : 2 |
All the exploded views of this vehicle
-
-
