Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 0 Porter Maxxi Multitech E5 Plus 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

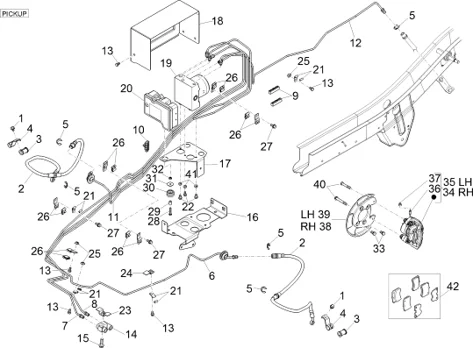

Instalation du freins - transmisisons : 05.03 TUYAUS DU FREINS - ETRIERS DE FREIN II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/699/Porter_Maxxi_Multitech_E5_Plus_2014-2015_05.03.PNG)
1 |
D9165160610 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/0/3/img/116403.jpg)
2 |
FRONT BRAKE PIPE "PIAGGIO GENUINE PART" PORTER -B007247 More informationQuantity required : 2 |
||||||
|
3 |
D9004540022 - TAMPON More informationQuantity required : 2 |
||||||
|
4 |
D9004461432 - CLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/7/2/img/111972.jpg)
5 |
RETAINING CLIP FOR BRAKE HOSE "PIAGGIO GENUINE PART" PORTER -261332 More informationQuantity required : 5 |
||||||
|
6 |
B000533 - TUYAU FREIN More informationQuantity required : 1 |
||||||
|
6 |
B007212 - TUYAU FREIN GAU. More informationQuantity required : 1 |
||||||
|
7 |
B000530 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
7 |
B007209 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
8 |
B000531 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
8 |
B007210 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
9 |
B005360 - RESSORT More informationQuantity required : 2 |
||||||
|
10 |
B005353 - SUPPORT More informationQuantity required : 1 |
||||||
|
11 |
B000532 - TUYAU FREIN More informationQuantity required : 1 |
||||||
|
11 |
B007211 - TUYAU FREIN DRT. More informationQuantity required : 1 |
||||||
|
12 |
B000534 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
13 |
9161160612000 - BOULON More informationQuantity required : 8 |
||||||
|
14 |
B000527 - RACCORD D'ADMISSION More informationQuantity required : 1 |
||||||
|
15 |
D9165160830 - BOULON More informationQuantity required : 1 |
||||||
|
16 |
B000901 - EQUERRE More informationQuantity required : 1 |
||||||
|
17 |
B000902 - EQUERRE More informationQuantity required : 1 |
||||||
|
18 |
B000903 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/1/6/4/img/124164.jpg)
19 |
ABS UNIT "PIAGGIO GENUINE PART" PORTER MULTITECK E4 2010>, PORTER DIESEL 2010> -1E001657 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/7/1/2/img/123712.jpg)
20 |
ABS UNIT "PIAGGIO GENUINE PART" PIAGGIO PORTER 2010> -B006071- More informationQuantity required : 1 |
||||||
|
21 |
D9622130705 - COLLIER More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
22 |
031086 - VIS S03108600 More informationQuantity required : 3 |
||||||
|
23 |
D5515287Z01 - SUPPORT More informationQuantity required : 1 |
||||||
|
24 |
4738287Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
25 |
D9004174001 - ECROU More informationQuantity required : 3 |
||||||
|
26 |
D9004461468 - CLIPS More informationQuantity required : 6 |
||||||
|
27 |
D9165260616 - BOULON More informationQuantity required : 3 |
||||||
|
27 |
D9165260616 - BOULON More informationQuantity required : 3 |
||||||
|
28 |
030052 - VIS S03005200 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/6/5/img/67765.jpg)
29 |
624456 - ENTRETOISE More informationQuantity required : 3 |
||||||
|
30 |
D9004480596 - TAMPON More informationQuantity required : 3 |
||||||
|
31 |
016667 - RONDELLE More informationQuantity required : 3 |
||||||
|
32 |
709116 - ECROU More informationQuantity required : 3 |
||||||
|
33 |
1E002521 - VIS More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/3/6/8/img/122368.jpg)
34 |
658278 - ETRIER FREIN AVD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/7/1/6/img/121716.jpg)
35 |
FRONT BRAKE CALIPER - LEFT "PIAGGIO GENUINE PART" PORTER -658279 More informationQuantity required : 1 |
||||||
|
36 |
837145 - RACCORD More informationQuantity required : 1 |
||||||
|
37 |
837144 - BOUCHON More informationQuantity required : 1 |
||||||
|
38 |
4770387Z01000 - FLASQUE AVG More informationQuantity required : 1 |
||||||
|
39 |
4770487Z01000 - DISQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/4/4/img/111944.jpg)
40 |
9004101534000 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
41 |
006976 - RONDELLE S00697600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/9/4/img/121094.jpg)
42 |
FRONT BRAKE PADS SET (4 PADS) "PIAGGIO GENUINE PART" PORTER ESSENCE-DIESEL -0449187503000 More informationQuantity required : 1 |
