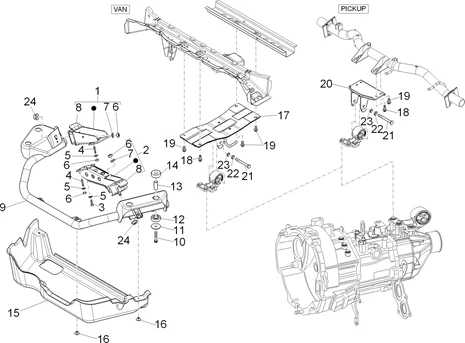

Châssis - parties plastiques - carrosseries : 02.06 SUPPORTS MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/699/Porter_Maxxi_Multitech_E5_Plus_2014-2015_02.06.PNG)
1 |
B010251 - EQUERRE More informationQuantity required : 1 |
|||||||||
|
2 |
B010245 - EQUERRE More informationQuantity required : 1 |
|||||||||
|
3 |
B010247 - BOULON More informationQuantity required : 2 |
|||||||||
|
4 |
B010011 - GOUJON More informationQuantity required : 6 |
|||||||||
|
5 |
B010620 - RONDELLE More informationQuantity required : 8 |
|||||||||
|
6 |
B010619 - ECROU More informationQuantity required : 8 |
|||||||||
|
7 |
B010249 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
8 |
B010250 - TAMPON AVANT More informationQuantity required : 1 |
|||||||||
|
9 |
B005166 - SUPPORT MOTEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/9/8/img/111898.jpg)
10 |
D9004101431 - BOULON More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/0/3/img/111503.jpg)
11 |
9004201291000 - RONDELLE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/5/5/img/111255.jpg)
12 |
9004540073000 - TAMPON More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/3/5/img/112235.jpg)
13 |
D9004560252 - ENTRETOISE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/3/5/img/111235.jpg)
14 |
9004540074000 - TAMPON More informationQuantity required : 4 |
|||||||||
|
15 |
B023416 - COUVERCLE MOTEUR DRT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/7/6/8/img/111768.jpg)
16 |
264462 - BOULON More informationQuantity required : 4 |
|||||||||
|
17 |
B005546 - EQUERRE More informationQuantity required : 1 |
|||||||||
|
18 |
D9165160825 - BOULON More informationQuantity required : 3 |
|||||||||
|
19 |
D9004119554 - BOULON More informationQuantity required : 1 |
|||||||||
|
20 |
B005541 - EQUERRE More informationQuantity required : 1 |
|||||||||
|
21 |
262125 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
22 |
016410 - ANNEAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
23 |
016626 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
24 |
D9004170307 - ECROU More informationQuantity required : 2 |
|||||||||
