Vehicle Exploded View - APRILIA PEGASO 600 PEGASO 600 1990-1991
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

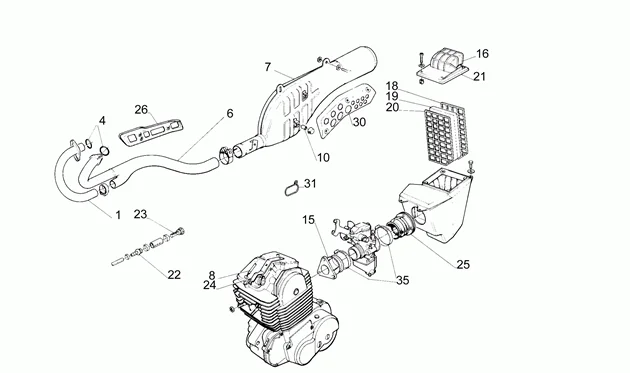

Chassis : 18 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/936/PEGASO_600_1990-1991_18.png)
1 |
AP8119239 - COUDE ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
4 |
AP0230080 - JOINT More informationQuantity required : 2 |
||||||
|
7 |
AP8119234 - SILENCIEUX 600 PEGASO More informationQuantity required : 1 |
||||||
|
8 |
AP8114172 - CABLE DECOMPRESSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/0/img/71430.JPG)
10 |
AP8121041 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
15 |
AP8106047 - COLLECTEUR ADM(PL) More informationQuantity required : 2 |
||||||
|
16 |
AP8120524 - MANCHON CARBURATEUR More informationQuantity required : 1 |
||||||
|
18 |
AP8130537 - GRILLE ARRIERE (PL) More informationQuantity required : 1 |
||||||
|
19 |
AP8117061 - FILTRE A AIR More informationQuantity required : 1 |
||||||
|
20 |
AP8130589 - GRILLE FILTRE (PL) More informationQuantity required : 1 |
||||||
|
21 |
AP8130538 - COUVERCLE FILTRE (PL) More informationQuantity required : 1 |
||||||
|
22 |
AP8101669 - RACCORD TUBE DE FILTRE More informationQuantity required : 1 |
||||||
|
23 |
AP8101679 - FILTRE More informationQuantity required : 1 |
||||||
|
24 |
AP8132773 - PATTE DECOMPRESSEUR More informationQuantity required : 1 |
||||||
|
25 |
AP8120382 - RACCORD CARBURATEUR More informationQuantity required : 1 |
||||||
|
26 |
AP8119236 - PROTECT SILENCIEUX(PL) More informationQuantity required : 1 |
||||||
|
30 |
AP8119235 - PROTECTION SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.JPG)
31 |
AP8120428 - GUIDE-CABLE SUP. More informationQuantity required : 1 |
||||||
|
35 |
AP0251855 - COLLIER More informationQuantity required : 2 |
