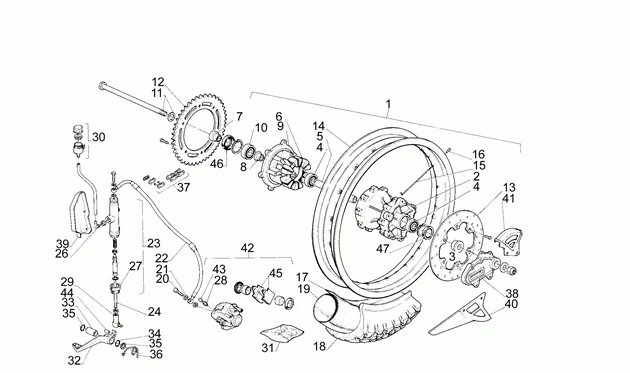

Chassis : 22 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/936/PEGASO_600_1990-1991_22.png)
1 |
AP8108465 - JANTE AR More informationQuantity required : 1 |
||||||
|
1 |
AP8108516 - ROUE AR More informationQuantity required : 1 |
||||||
|
2 |
AP8125397 - MOYEU AR More informationQuantity required : 1 |
||||||
|
2 |
AP8125608 - MOYEU =8125594 More informationQuantity required : 1 |
||||||
|
3 |
AP8125442 - ENTRETOISE ROUE ARRIERE; More informationQuantity required : 1 |
||||||
|
4 |
AP8110045 - ROULEMENT MOYEU More informationQuantity required : 2 |
||||||
|
5 |
AP8125427 - ENTRETOISE INTERNE; More informationQuantity required : 1 |
||||||
|
6 |
AP8125679 - CAOUTCHOUC ELASTIQUE; More informationQuantity required : 1 |
||||||
|
7 |
AP8125425 - ENTRETOISE; More informationQuantity required : 1 |
||||||
|
8 |
AP8125423 - DOUILLE ENTRETOISE EXTERNE; More informationQuantity required : 1 |
||||||
|
9 |
AP8125563 - PORTE-COURONNE More informationQuantity required : 1 |
||||||
|
10 |
AP8110050 - ROULEMENT ELASTIQUE More informationQuantity required : 1 |
||||||
|
11 |
AP8125399 - AXE ROUE AR*8125649 More informationQuantity required : 1 |
||||||
|
12 |
AP8107048 - COURONNE*42 More informationQuantity required : 1 |
||||||
|
13 |
AP8113628 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
14 |
AP8108444 - JANTE D.17 More informationQuantity required : 1 |
||||||
|
15 |
AP8108759 - RAYON More informationQuantity required : 36 |
||||||
|
16 |
AP8108672 - NIPPLES More informationQuantity required : 36 |
||||||
|
17 |
AP8109281 - FLAP RUOTA POSTERIORE 17 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
20 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
21 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
|
22 |
AP8113436 - DURITE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/4/9/1/img/39491.jpg)
23 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, 600-650 PEGASO 1990>1996 -852218- More informationQuantity required : 1 |
||||||
|
24 |
AP8113234 - AXE MAITRE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.JPG)
26 |
AP8213057 - RACCORD POMPE ARRIERE More informationQuantity required : 1 |
||||||
|
27 |
AP8113288 - SOUFFLET EN CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
28 |
SCREW - DRAIN SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER APRILIA -AP8113006- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
29 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI ET APRILIA -AP8210007- More informationQuantity required : 1 |
||||||
|
30 |
AP8133873 - SERBATOIO OLIO FRENI More informationQuantity required : 1 |
||||||
|
31 |
AP8113376 - KIT REPARATION ETRIER AR More informationQuantity required : 1 |
||||||
|
32 |
AP8132710 - PEDALE DE FREIN More informationQuantity required : 1 |
||||||
|
33 |
AP8120529 - DOUILLE LEVIER FREIN More informationQuantity required : 1 |
||||||
|
34 |
AP8220149 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
35 |
AP8121120 - CLIPS More informationQuantity required : 1 |
||||||
|
36 |
AP8121116 - RESSORT RETOUR LEVIER More informationQuantity required : 1 |
||||||
|
37 |
AP8107047 - CHAINE CPLT(PL) More informationQuantity required : 1 |
||||||
|
38 |
AP8134150 - PLAQUE FIXATION*8134150 More informationQuantity required : 1 |
||||||
|
39 |
AP8135109 - CARTER More informationQuantity required : 1 |
||||||
|
40 |
AP8131228 - CACHE More informationQuantity required : 1 |
||||||
|
41 |
AP8131229 - CACHE More informationQuantity required : 1 |
||||||
|
42 |
AP8113425 - ETRIER FREIN ARR=8113337 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
43 |
AP8113005 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.JPG)
44 |
AP8120253 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
45 |
AP8113375 - JEU PLAQUETTES FREIN AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/0/8/img/47708.jpg)
46 |
SEAL RING GASKET- FOR REAR WHEEL HUB "PIAGGIO GENUINE PART" APRILIA 125 SX, RX, MX, 125-650 PEGASO -AP8125462- More informationQuantity required : 1 |
||||||
|
47 |
AP8203074 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
