Vehicle Exploded View - APRILIA PEGASO 50 1992-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

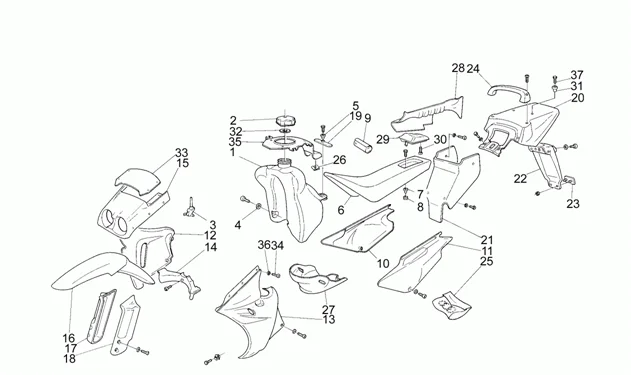

Chassis : 7 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/301/Pegaso_50_1992-1994_7.PNG)
2 |
AP8220620 - BOUCHON More informationQuantity required : 1 |
||||||
|
5 |
AP8121072 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
7 |
AP8221056 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/1/img/71391.jpg)
8 |
AP8120311 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
9 |
AP8201152 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
17 |
AP8132845 - SUPPORT GARDE BOUE DR.N. More informationQuantity required : 1 |
||||||
|
18 |
AP8132847 - SUPPORT GARDE BOUE G.N. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/3/img/46623.jpg)
19 |
AP8120663 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
21 |
AP8226168 - PROTECTION AMORTISSEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/1/9/7/img/51197.jpg)
22 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" APRILIA 50 RX, SX 1995>2004, 50-125 MX, 50 PEGASO -AP8156110- More informationQuantity required : 1 |
||||||
|
23 |
AP8112560 - CATADIOPTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
26 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
32 |
AP8120683 - JOINT More informationQuantity required : 1 |
||||||
|
33 |
AP8230976 - BULLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
34 |
AP8152268 - VIS More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/4/8/6/img/164486.JPG)
36 |
AP8120591 - RONDELLE More informationQuantity required : 20 |
