Vehicle Exploded View - APRILIA PEGASO 50 1992-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

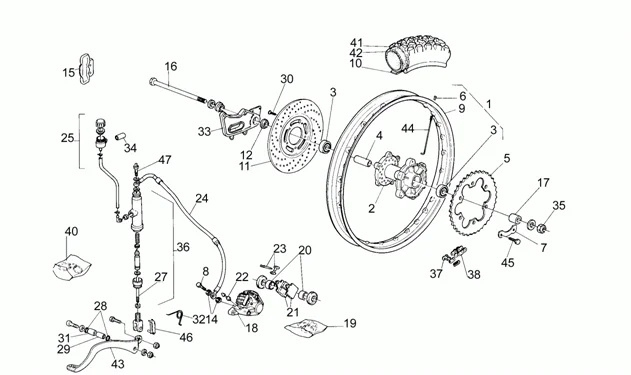

Chassis : 14 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/301/Pegaso_50_1992-1994_14.PNG)
3 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50-125 APRILIA -AP8225123- More informationQuantity required : 2 |
||||||
|
4 |
AP8225249 - ENTRETOISE MOYEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/1/4/5/img/56145.jpg)
6 |
AP8208410 - NIPPLES More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
8 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
|
10 |
AP8209032 - FLAP POUR ROUE More informationQuantity required : 1 |
||||||
|
11 |
AP8213268 - DISQUE FREIN AR INOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/3/img/46723.jpg)
12 |
AP8121088 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
14 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
|
15 |
AP8230575 - PROTECTION POMPE FREIN; More informationQuantity required : 1 |
||||||
|
16 |
AP8225233 - AXE DE ROUE AR More informationQuantity required : 1 |
||||||
|
20 |
AP8213054 - PISTONS PINCE FREIN ARR. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/6/img/72196.jpg)
21 |
REAR BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>1998, PEGASO, EUROPA, AF1 1991>1992 -AP8213051- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/0/0/img/72200.jpg)
22 |
BLEEDER SCREW "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1100 BREVA, GRISO, 1200 NORGE, SPORT/APRILIA 50 RS, PEGASO, EUROPA, SR -AP8213113- More informationQuantity required : 1 |
||||||
|
23 |
AP8213053 - GOUJON+RESSORT PINCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/6/5/img/56465.jpg)
25 |
TANK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART"APRILIA 50-125 RS, PEGASO, AF1, TUONO, 50 RALLY, MX, SX, RX -AP8213446- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/2/2/img/45922.jpg)
27 |
AP8113248 - POUS M-CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
28 |
AP8220149 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/2/img/71922.jpg)
30 |
AP8152156 - VIS More informationQuantity required : 5 |
||||||
|
32 |
AP8221100 - RES. HELIC. TORSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
34 |
AP8121718 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/5/9/img/57559.jpg)
35 |
NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" 50 RS 1999>2005, TUONO 2003>2004, PEGASO 1992>1994 -AP8225208- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/8/4/img/56384.jpg)
36 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RALLY, PEGASO, MX, TUONO -AP8213117- More informationQuantity required : 1 |
||||||
|
37 |
AP8207019 - MAILLON DE JONCTION More informationQuantity required : 1 |
||||||
|
38 |
AP8207017 - CHA?NE+MAIL.JONCTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
45 |
AP8152287 - VIS BRIDE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/8/img/71288.jpg)
46 |
CLIP FOR GEARBOX SELECTOR "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, 750 DORSODURO/MOTO-GUZZI V7, STELVIO, GRISO -AP8113082- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/9/8/img/47498.jpg)
47 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, MX, TUONO -AP8124479- More informationQuantity required : 1 |
