Vehicle Exploded View - MOTO-GUZZI NTX 650 1987-1990
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

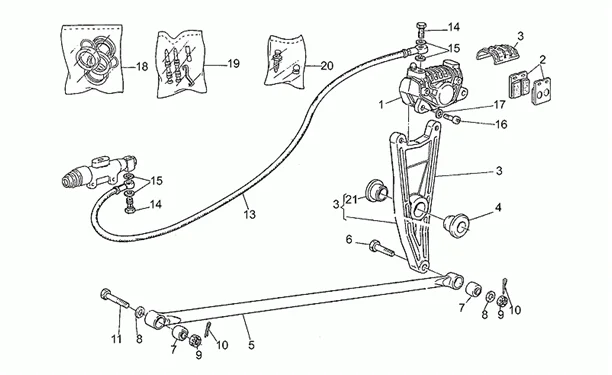

Chassis : 33.16 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/510/NTX_650_1987-1990_33.16.PNG)
1 |
GU23653011 - ETRIER AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/0/5/4/img/130054.jpg)
2 |
REAR BRAKE PADS - "PIAGGIO GENUINE PART" MOTO-GUZZI V50, V65, V10, V11, STRADA, NEVADA, DAYTONA -GU27654610- More informationQuantity required : 1 |
||||||
|
3 |
Plaq.fix pince frein |
||||||
|
3 |
|
||||||
|
4 |
GU27636010 - DOUILLE More informationQuantity required : 1 |
||||||
|
4 |
GU31634230 - DOUILLE More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
|
6 |
|
||||||
|
7 |
|
||||||
|
8 |
|
||||||
|
9 |
|
||||||
|
10 |
Goupille |
||||||
|
11 |
GU27636810 - VIS More informationQuantity required : 1 |
||||||
|
13 |
GU30658561 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
14 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
15 |
GU25656100 - GARNITURE More informationQuantity required : 4 |
||||||
|
16 |
GU98612422 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
17 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
18 |
GU39659000 - KIT RÚVISION PINCE More informationQuantity required : 1 |
||||||
|
19 |
GU39659100 - AXES+RESSORT More informationQuantity required : 1 |
||||||
|
20 |
GU65659200 - KIT DE VIS More informationQuantity required : 1 |
||||||
|
21 |
ENTRETOISE |
||||||
|
21 |
GU27636010 - DOUILLE More informationQuantity required : 1 |
