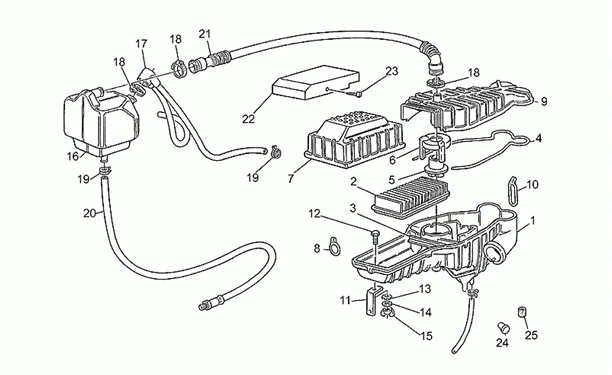

Chassis : 33.08 FILTRE AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/510/NTX_650_1987-1990_33.08.PNG)
1 |
FILTRE A AIR |
||||||
|
2 |
GU28113650 - FILTRE AIR More informationQuantity required : 1 |
||||||
|
3 |
GU19112960 - SUPPORT More informationQuantity required : 1 |
||||||
|
4 |
JOINT |
||||||
|
5 |
CLOISON AV |
||||||
|
6 |
GU19111160 - COUVERCLE LAT CULASS More informationQuantity required : 1 |
||||||
|
7 |
COUVERCLE FILTRE AIR |
||||||
|
8 |
GU31110715 - RESSORT COURT More informationQuantity required : 3 |
||||||
|
9 |
FILTRE A AIR |
||||||
|
10 |
Ressort long |
||||||
|
11 |
GU31114165 - SUPPORT FILTRE More informationQuantity required : 1 |
||||||
|
12 |
GU98054214 - VIS More informationQuantity required : 1 |
||||||
|
13 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 1 |
||||||
|
14 |
GU95000205 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
GU92670305 - ECROU More informationQuantity required : 1 |
||||||
|
16 |
Corp |
||||||
|
17 |
GU23159671 - RENIFLARD More informationQuantity required : 1 |
||||||
|
18 |
GU93305018 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
19 |
CM002907 - COLLIER More informationQuantity required : 3 |
||||||
|
20 |
GU27159360 - RENIFLARD More informationQuantity required : 1 |
||||||
|
21 |
TUYAU |
||||||
|
22 |
SILENCIEUX |
||||||
|
23 |
GU99200413 - VIS More informationQuantity required : 2 |
||||||
|
24 |
GU19433000 - CAOUTCHOUC DE FERM. More informationQuantity required : 1 |
||||||
|
25 |
GU14423800 - CAOUTCHOUC More informationQuantity required : 1 |
