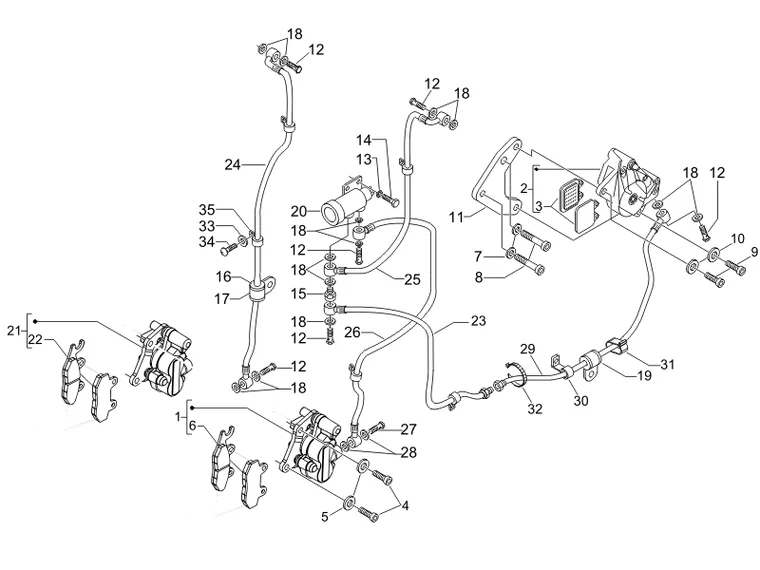

Vehicle Exploded View - GILERA NEXUS 500 E3 2009-2011 GILERA

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
Tuyaus du freins - Etriers de frein
Search
CM072501 - PINCES FRAIN

1
P2R reference P2R reference 95625
Maker reference Maker reference CM072501

CM072501 - PINCES FRAIN

More information

Quantity required : 1

56471R - ETRIER FREIN ARRIERE

2
P2R reference P2R reference 80127
Maker reference Maker reference 56471R

56471R - ETRIER FREIN ARRIERE

More information

Quantity required : 1

BRAKE PADS - "PIAGGIO GENUINE PART" 125-250 X9-EVO FRONT+REAR, 125 X8 REAR, 400-500 BEVERLY REAR, 500 X9-EVO/GILERA 500 NEXUS REAR (PAIR) (BREMBO) -647077-

3
P2R reference P2R reference 68003
Maker reference Maker reference 647077

BRAKE PADS - "PIAGGIO GENUINE PART" 125-250 X9-EVO FRONT+REAR, 125 X8 REAR, 400-500 BEVERLY REAR, 500 X9-EVO/GILERA 500 NEXUS REAR (PAIR) (BREMBO) -647077-

More information

Quantity required : 1

SCREW - 8X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015792-

4
P2R reference P2R reference 65396
Maker reference Maker reference 015792

SCREW - 8X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015792-

More information

Quantity required : 4

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

5
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

More information

Quantity required : 4

FRONT BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 850 SRV AV/GILERA 800 GP (PAIR) -650097

6
P2R reference P2R reference 68138
Maker reference Maker reference 650097

FRONT BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 850 SRV AV/GILERA 800 GP (PAIR) -650097

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

7
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

More information

Quantity required : 1

844483 - VIS

8
P2R reference P2R reference 69321
Maker reference Maker reference 844483

844483 - VIS

More information

Quantity required : 1

598919 - VIS

9
P2R reference P2R reference 67369
Maker reference Maker reference 598919

598919 - VIS

More information

Quantity required : 2

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

10
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

More information

Quantity required : 2

649418 - FLASQUE ROUE AVT

11
P2R reference P2R reference 86955
Maker reference Maker reference 649418

649418 - FLASQUE ROUE AVT

More information

Quantity required : 1

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451-

12
P2R reference P2R reference 66050
Maker reference Maker reference 265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451-

More information

Quantity required : 5

006966 - RONDELLE S00696600

13
P2R reference P2R reference 63838
Maker reference Maker reference 006966

006966 - RONDELLE S00696600

More information

Quantity required : 2

709674 - VIS

14
P2R reference P2R reference 68497
Maker reference Maker reference 709674

709674 - VIS

More information

Quantity required : 2

597033 - JOINT FREIN

15
P2R reference P2R reference 82228
Maker reference Maker reference 597033

597033 - JOINT FREIN

More information

Quantity required : 1

230636 - PASSE-CABLE

16
P2R reference P2R reference 65960
Maker reference Maker reference 230636

230636 - PASSE-CABLE

More information

Quantity required : 2

564836 - COLLIER

17
P2R reference P2R reference 67081
Maker reference Maker reference 564836

564836 - COLLIER

More information

Quantity required : 2

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927-

18
P2R reference P2R reference 65723
Maker reference Maker reference 127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927-

More information

Quantity required : 12

269273 - COLLIER TUYAU

19
P2R reference P2R reference 66081
Maker reference Maker reference 269273

269273 - COLLIER TUYAU

More information

Quantity required : 2

56122R - VALVE REGLAGE PRESSION

20
P2R reference P2R reference 67003
Maker reference Maker reference 56122R

56122R - VALVE REGLAGE PRESSION

More information

Quantity required : 1

CM072502 - PINCES FRAIN

21
P2R reference P2R reference 95626
Maker reference Maker reference CM072502

CM072502 - PINCES FRAIN

More information

Quantity required : 1

FRONT BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 850 SRV AV/GILERA 800 GP (PAIR) -650097

22
P2R reference P2R reference 68138
Maker reference Maker reference 650097

FRONT BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 850 SRV AV/GILERA 800 GP (PAIR) -650097

More information

Quantity required : 1

600813 - CANALISATEUR A FREIN

23
P2R reference P2R reference 82935
Maker reference Maker reference 600813

600813 - CANALISATEUR A FREIN

More information

Quantity required : 1

975693 - CANALIS.

24
P2R reference P2R reference 71049
Maker reference Maker reference 975693

975693 - CANALIS.

More information

Quantity required : 1

REAR BRAKE PIPE ( FROM VALVE TO PUMP) "PIAGGIO GENUINE PART" 125-250-500 X9/GILERA 500 NEXUS -564784-

25
P2R reference P2R reference 80145
Maker reference Maker reference 564784

REAR BRAKE PIPE ( FROM VALVE TO PUMP) "PIAGGIO GENUINE PART" 125-250-500 X9/GILERA 500 NEXUS -564784-

More information

Quantity required : 1

975694 - CANALISAT.

26
P2R reference P2R reference 94304
Maker reference Maker reference 975694

975694 - CANALISAT.

More information

Quantity required : 1

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451-

27
P2R reference P2R reference 66050
Maker reference Maker reference 265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451-

More information

Quantity required : 1

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927-

28
P2R reference P2R reference 65723
Maker reference Maker reference 127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927-

More information

Quantity required : 2

600255 - CANALISATEUR FREIN AR

29
P2R reference P2R reference 82821
Maker reference Maker reference 600255

600255 - CANALISATEUR FREIN AR

More information

Quantity required : 1

136916 - PLAQUE

30
P2R reference P2R reference 65734
Maker reference Maker reference 136916

136916 - PLAQUE

More information

Quantity required : 1

179013 - RESSORT

31
P2R reference P2R reference 65790
Maker reference Maker reference 179013

179013 - RESSORT

More information

Quantity required : 1

257134 - COLLIER

32
P2R reference P2R reference 66017
Maker reference Maker reference 257134

257134 - COLLIER

More information

Quantity required : 1

006966 - RONDELLE S00696600

33
P2R reference P2R reference 63838
Maker reference Maker reference 006966

006966 - RONDELLE S00696600

More information

Quantity required : 2

122675 - VIS

34
P2R reference P2R reference 65714
Maker reference Maker reference 122675

122675 - VIS

More information

Quantity required : 2

307166 - COLLIER

35
P2R reference P2R reference 66329
Maker reference Maker reference 307166

307166 - COLLIER

More information

Quantity required : 2
