Vehicle Exploded View - GILERA NEXUS 500 E3 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

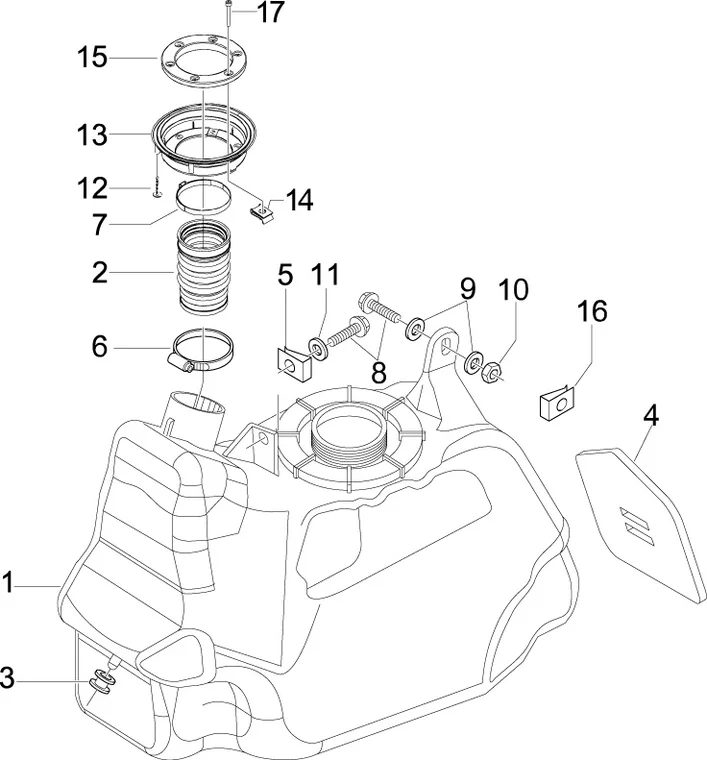

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/186/Nexus_500_E3_2009-2011-148.png)
1 |
975153 - RESERVOIR More informationQuantity required : 1 |
||||||
|
2 |
655537 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
3 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888- More informationQuantity required : 1 |
||||||
|
4 |
577790 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/1/img/72871.JPG)
6 |
CM001910 - COLLIER More informationQuantity required : 1 |
||||||
|
7 |
CM001920 - COLLIER More informationQuantity required : 1 |
||||||
|
8 |
B016793 - VIS M6X22 More informationQuantity required : 2 |
||||||
|
9 |
268304 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/8/img/65818.jpg)
10 |
195482 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
11 |
078307 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
828021 - VIS More informationQuantity required : 4 |
||||||
|
13 |
655358 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/0/img/70910.jpg)
14 |
959263 - PLAQUETTE More informationQuantity required : 3 |
||||||
|
15 |
655357 - RACCORD BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
16 |
573580 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
17 |
655539 - VIS More informationQuantity required : 6 |
