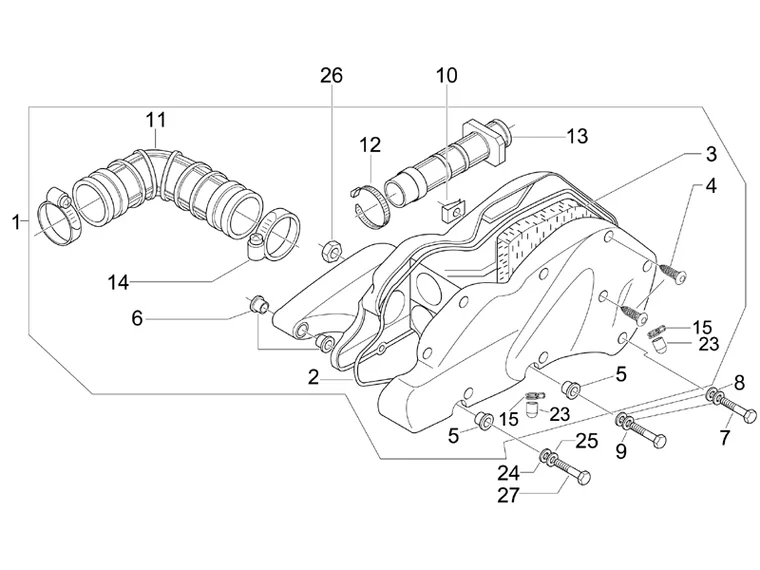

Vehicle Exploded View - GILERA NEXUS 125 E3 2007-2008 GILERA

Moteur : 01.45 FILTRE À AIR
Filtre à air
Search
AIR FILTER HOUSING "PIAGGIO GENUINE PART" 125 BEVERLY, CARNABY, X7/GILERA 125 RUNNER, NEXUS/APRILIA 125 ATLANTIC, SPORT-CITY -871804-

1
P2R reference P2R reference 70405
Maker reference Maker reference 871804

AIR FILTER HOUSING "PIAGGIO GENUINE PART" 125 BEVERLY, CARNABY, X7/GILERA 125 RUNNER, NEXUS/APRILIA 125 ATLANTIC, SPORT-CITY -871804-

More information

Quantity required : 1
GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829259-

2
P2R reference P2R reference 68833
Maker reference Maker reference 829259

GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829259-

More information

Quantity required : 1
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO -8292580P-

3
P2R reference P2R reference 156970
Maker reference Maker reference 8292580P

AIR FILTER"PIAGGIO GENUINE PART" PREMIUM 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO -8292580P-

More information

Quantity required : 1
SCREW - 3x20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

4
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

More information

Quantity required : 9
830057 - BAGUE

5
P2R reference P2R reference 68889
Maker reference Maker reference 830057

830057 - BAGUE

More information

Quantity required : 2
830056 - BAGUE

6
P2R reference P2R reference 68888
Maker reference Maker reference 830056

830056 - BAGUE

More information

Quantity required : 4
SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640-

7
P2R reference P2R reference 65448
Maker reference Maker reference 018640

SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640-

More information

Quantity required : 2
003056 - RONDELLE

8
P2R reference P2R reference 63777
Maker reference Maker reference 003056

003056 - RONDELLE

More information

Quantity required : 2
012533 - RONDELLE

9
P2R reference P2R reference 65345
Maker reference Maker reference 012533

012533 - RONDELLE

More information

Quantity required : 2
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

10
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 2
845995 - MANCHON

11
P2R reference P2R reference 69378
Maker reference Maker reference 845995

845995 - MANCHON

More information

Quantity required : 1
CM001926 - COLLIER

12
P2R reference P2R reference 72885
Maker reference Maker reference CM001926

CM001926 - COLLIER

More information

Quantity required : 1
845996 - MANCHON

13
P2R reference P2R reference 69379
Maker reference Maker reference 845996

845996 - MANCHON

More information

Quantity required : 1
260918 - BRIDE

14
P2R reference P2R reference 66046
Maker reference Maker reference 260918

260918 - BRIDE

More information

Quantity required : 1
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910-

15
P2R reference P2R reference 72895
Maker reference Maker reference CM002910

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910-

More information

Quantity required : 2
CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831-

23
P2R reference P2R reference 68701
Maker reference Maker reference 827831

CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831-

More information

Quantity required : 2
003056 - RONDELLE

24
P2R reference P2R reference 63777
Maker reference Maker reference 003056

003056 - RONDELLE

More information

Quantity required : 1
012533 - RONDELLE

25
P2R reference P2R reference 65345
Maker reference Maker reference 012533

012533 - RONDELLE

More information

Quantity required : 1
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

26
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

More information

Quantity required : 1
259166 - VIS

27
P2R reference P2R reference 66033
Maker reference Maker reference 259166
Replaced by référence Replaced by référence 75646

259166 - VIS

More information

Quantity required : 1
