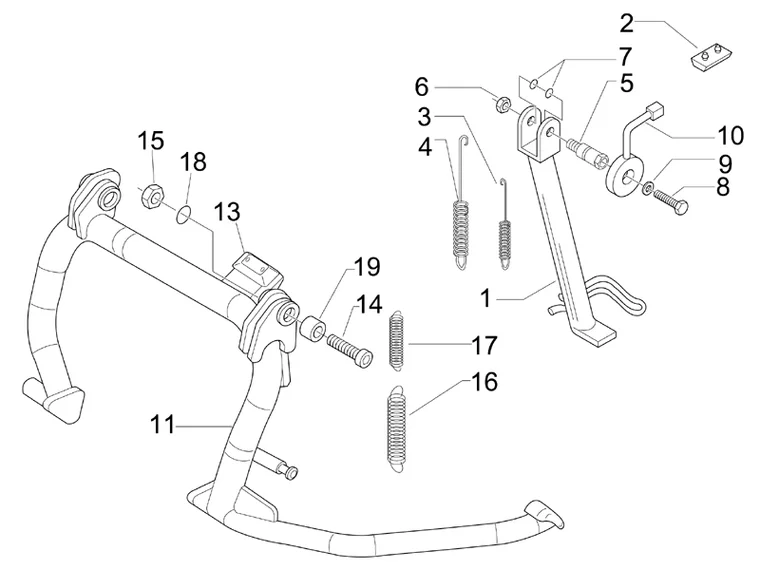

Vehicle Exploded View - GILERA NEXUS 125 E3 2007-2008 GILERA

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
Béquille/s
Search
647473 - BEQUILLE LAT.

1
P2R reference P2R reference 68020
Maker reference Maker reference 647473

647473 - BEQUILLE LAT.

More information

Quantity required : 1
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER + MAXISCOOTER -582885-

2
P2R reference P2R reference 67268
Maker reference Maker reference 582885

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER + MAXISCOOTER -582885-

More information

Quantity required : 1
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -295788-

3
P2R reference P2R reference 66286
Maker reference Maker reference 295788

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -295788-

More information

Quantity required : 1
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -295789-

4
P2R reference P2R reference 66287
Maker reference Maker reference 295789

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -295789-

More information

Quantity required : 1
1C001480 - VIS

5
P2R reference P2R reference 154058
Maker reference Maker reference 1C001480

1C001480 - VIS

More information

Quantity required : 1
1C001480 - VIS

5
P2R reference P2R reference 154058
Maker reference Maker reference 647595

1C001480 - VIS

More information

Quantity required : 1
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

6
P2R reference P2R reference 63765
Maker reference Maker reference 002440

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

More information

Quantity required : 1
SPACER- M23-M27 FOR SIDE STAND "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189-

7
P2R reference P2R reference 65812
Maker reference Maker reference 191189

SPACER- M23-M27 FOR SIDE STAND "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189-

More information

Quantity required : 2
292889 - VIS

8
P2R reference P2R reference 66257
Maker reference Maker reference 292889

292889 - VIS

More information

Quantity required : 2
012532 - RONDELLE S01253200

9
P2R reference P2R reference 65344
Maker reference Maker reference 012532

012532 - RONDELLE S01253200

More information

Quantity required : 2
SIDE STAND SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -639542-

10
P2R reference P2R reference 67837
Maker reference Maker reference 639542

SIDE STAND SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -639542-

More information

Quantity required : 1
CENTER STAND "PIAGGIO GENUINE PART" 125 X9 2005>/GILERA 125-250-300 NEXUS 2007>/APRILIA 125-300 SR-MAX 2011> -56449R-

11
P2R reference P2R reference 67060
Maker reference Maker reference 56449R

CENTER STAND "PIAGGIO GENUINE PART" 125 X9 2005>/GILERA 125-250-300 NEXUS 2007>/APRILIA 125-300 SR-MAX 2011> -56449R-

More information

Quantity required : 1
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -1C002702-

13
P2R reference P2R reference 146196
Maker reference Maker reference 272426

CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -1C002702-

More information

Quantity required : 1
SCREW - FOR CENTRAL STAND 10X130 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -030115-

14
P2R reference P2R reference 65625
Maker reference Maker reference 030115

SCREW - FOR CENTRAL STAND 10X130 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -030115-

More information

Quantity required : 1
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

15
P2R reference P2R reference 63765
Maker reference Maker reference 002440

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

More information

Quantity required : 1
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -582851-

16
P2R reference P2R reference 67267
Maker reference Maker reference 582851

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -582851-

More information

Quantity required : 1
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -582850-

17
P2R reference P2R reference 67266
Maker reference Maker reference 582850

SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -582850-

More information

Quantity required : 1
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754-

18
P2R reference P2R reference 66127
Maker reference Maker reference 273754

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754-

More information

Quantity required : 2
SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298-

19
P2R reference P2R reference 67251
Maker reference Maker reference 582298

SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298-

More information

Quantity required : 1
