Vehicle Exploded View - DERBI MULHACEN 125 4T E3 2007-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

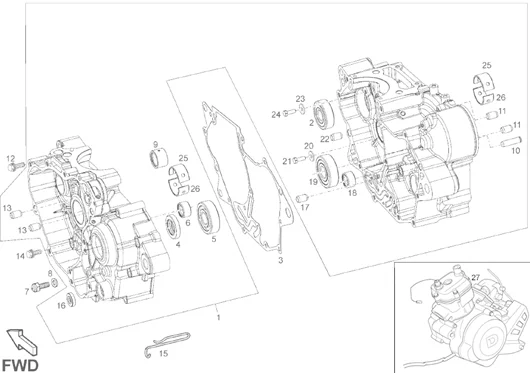

Vues éclatées : 21 CARTERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1111/Mulhacen_125_4T_E3_2007-2009_(EMEA)_21.png)
1 |
8993115002 - CARTER MOTEUR More informationQuantity required : 1 |
||||||
|
1 |
1A0058840A - CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/9/img/68899.jpg)
2 |
BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/6/1/img/70461.jpg)
3 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO 4 STROKE 2011> -873086- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/2/img/69412.jpg)
4 |
GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/1/img/68611.jpg)
5 |
CRANKCASE BEARING "PIAGGIO GENUINE PART" 500 BEVERLY, X9/GILERA 500 NEXUS/APRILIA 500 ATLANTIC, 125 RS, RX, SX -82668R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/5/img/69485.jpg)
6 |
ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -847211- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/3/img/146183.jpg)
7 |
NEUTRAL SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A006087- More informationQuantity required : 1 |
||||||
|
8 |
872055 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/8/img/65778.jpg)
9 |
ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/0/img/69450.jpg)
10 |
OIL PUMP AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, TUONO, RS -847076- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
11 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 1 |
||||||
|
12 |
828922 - VIS More informationQuantity required : 1 |
||||||
|
13 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
14 |
B016425 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
15 |
873735 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
16 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075- More informationQuantity required : 1 |
||||||
|
17 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 1 |
||||||
|
18 |
ROLLER BEARING FOR GEARBOX SECONDARY SHAFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -847211- More informationQuantity required : 1 |
||||||
|
19 |
CRANKCASE BEARING "PIAGGIO GENUINE PART" 500 BEVERLY, X9/GILERA 500 NEXUS/APRILIA 500 ATLANTIC, 125 RS, RX, SX -82668R- More informationQuantity required : 1 |
||||||
|
20 |
224664 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
031057 - BOULON S03105700 More informationQuantity required : 1 |
||||||
|
22 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 1 |
||||||
|
23 |
224664 - RONDELLE More informationQuantity required : 1 |
||||||
|
24 |
031057 - BOULON S03105700 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/4/8/img/109048.jpg)
25 |
8580170B - SEMICUSCIN. More informationQuantity required : 1 |
||||||
|
25 |
8580170R - SEMICUSCIN.DI More informationQuantity required : 1 |
||||||
|
26 |
8580180B - DEMI ROULEMENT More informationQuantity required : 1 |
||||||
|
26 |
8580180R - DEMI ROULEMENT More informationQuantity required : 1 |
||||||
|
27 |
CM1543055 - MOTEUR 125 4T/4V 6M E3 H2O A.E. More informationQuantity required : 1 |
